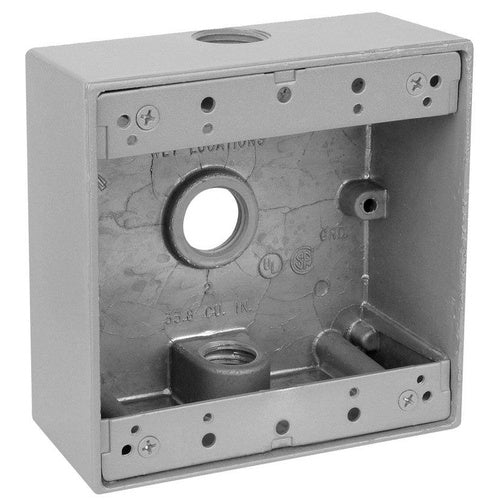

Red Dot 2IH3-1 2-Gang Weatherproof 3-Hole 1/2" Npt

Overview

Red Dot 2IH3-1 2-Gang Weatherproof 3-Hole 1/2" Npt

Product Specifications

• UPC: 04226939418
• Number Of Hubs: 3
• Hub Location: (1) Back, (1) Each End
• Hub Size: 1/2 Inch
• Material: A380 Die-Cast Aluminum Alloy
• Color: Silver
• Finish: Powder Coated
• Mounting: Surface
• Mounting Hardware: Lug
• Approval: UL, CSA
• Additional Information: Enclosure Rating NEMA 3R; Includes (2) Closure Plug, Ground Screw; Application Dry-Tite Box and Cover Protect Wiring Device, Switch, Electronic Component and Terminal Block, Damp Location, Dry Location, Wet Location; Applicable Standard Federal Specificat
• Catalog Number: 2IH3-1
• Brand Name: Dry-tite[R]
• Type: Universal
• Height: 4-9/16 Inch
• Width: 4-5/8 Inch
• Depth: 2-1/16 Inch
• Capacity: 31.8 Cubic Inch
• Number Of Gangs: 2
• Catalog Description: TWO GANG UNIVERSAL WEATHERPROOF BOX, 31 CUBIC INCHES, HUB SIZE 1/2 INCH, SILVER, ALUMINUM, 3 OUTLETS, TOP, BOTTOM, AND BACK ONE EACH
• Category: Steel Outlet Boxes
• Full Technical Description: Universal Type; A380 Die-Cast Aluminum Alloy Material; Powder Coated Finish; Silver Color; 4-5/8 Inch; 4-9/16 Inch; 2-1/16 Inch; 1/2 Inch Hub Size; 3 Hub(S); 2 Gang(S); UL, CSA Approval; Surface Mounting; 31.8 Cubic Inch Capacity; Lug Mounting Hardware; (1) Back, (1) Each End Hub Location; DRY-TITE[R] Brand; Enclosure Rating NEMA 3R; Includes (2) Closure Plug, Ground Screw; Application Dry-Tite Box and Cover Protect Wiring Device, Switch, Electronic Component and Terminal Block, Damp Location, Dry Location, Wet Location; Applicable Standard Federal Specification W-C-586
• Manufacturer: THOMAS & BETTS RED-DOT
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Weatherproof Device Box
• Unspsc: 39121305
• UPC 12 Digit: 042269394186
• SKU Name: rdot 2ih31

Resources

• Manufacturer Spec Sheet
