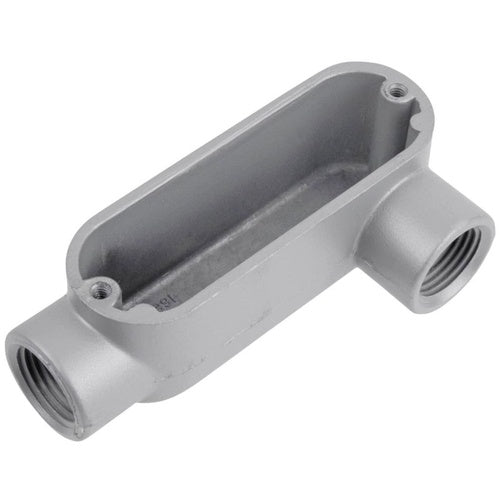

Red Dot ALL-2 3/4" Aluminum LL-Type Conduit Body

Overview

Red Dot ALL-2 3/4" Aluminum LL-Type Conduit Body

Product Specifications

• UPC: 04226931915
• Size: 4-5/8 Inch L x 2-15/16 Inch W
• Installation: Threaded
• Material: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw
• Approval: UL E28688, CSA
• Used On: Rigid/IMC Conduit
• Catalog Number: ALL-2
• Model: A
• Access Opening: Left Side
• Configuration: LL
• Cover Type: Die-Cast, Screw-On
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 3/4 Inch
• Catalog Description: 3/4 INCH THREADED DIE CAST ALUMINUM CONDUIT BODY-LEFT SIDE OPENING, FOR USE WITH RIGID/IMC CONDUIT
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Die-Cast Copper Free Aluminum Body, Stainless Steel Screw Material; 4-5/8 Inch L X 2-15/16 Inch W Size; Rigid/Imc Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; LL Configuration; 2 Hub(S); UL E28688, CSA Approval; Die-Cast, Screw-on Cover Type; 90 Deg Hub Location; Left Side Access Opening; A Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 042269319158
• SKU Name: rdot all2

Resources

• Manufacturer Spec Sheet
