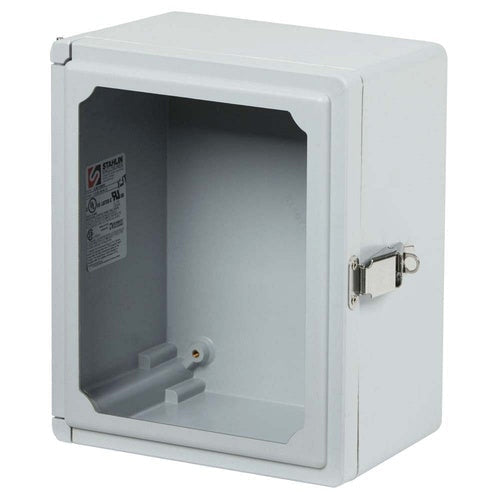

Stahlin CLW707HPL Hinged Fiberglass Enclosure

Overview

Stahlin CLW707HPL Hinged Fiberglass Enclosure

Product Specifications

• Brand Name: ROBROY
• Product Width: 7 IN
• Ul Listed: 1, 3, 3R, 4X, 12
• Product Depth: 5 IN
• Color: Glacier Gray
• Material: Fiberglass/Polyester
• Mounting: Wall Mount
• Special Features: Concealed hinges and screws
• Standard: UL/cUL/CSA & IEC
• Type: Electrical and Instrument Enclosures
• Finish: Smooth
• Product Height: 7 IN
• Catalog Description: THE STAHLIN CLASSIC SERIES WAS DEVELOPED FOR HIGH-END ELECTRONICS MANUFACTURERS. THEY ARE ESPECIALLY WELL SUITED FOR HIGH VISIBILITY LOCATIONS IN BOTH INDUSTRIAL AND COMMERCIAL APPLICATIONS.
• Full Technical Description: One Door Type; Hot Compression Molded Fiberglass Reinforced Polyester Material; Glacier Gray Color; 7.21 Inch; 7.21 Width in Inch; 7.21 Inch; 7.21 Height in Inch; 5.09 Inch; 5.09 Depth in Inch; 183.134 Height in mm; UL 50, CSA 22.2, CUL 50 Approval; NEMA 1/3/4X/12 Enclosure; Hinged, Gasketed, Padlockable Latch Cover Type; Indoor/Outdoor Service Type; Bp-66 Back Panel; Applicable Standard IEC 204, IEC 529; Application Electrical and Electronic Instrument, Pump Control System; Environmental Conditions Chemical Resistant, Corrosion Resistant, Dust Tight, Fire Resistant, Water Tight; Inclusion Metal Insert; Depth in Inch - Uom in; Height in Inch - Uom in; Height in mm - Uom mm; Width in Inch - Uom in
• Made In Usa: Yes
• Manufacturer: Robroy Industries / Stahlin
• Manufacturer Brand: Electrical Products
• Sub Category: Multipurpose Wall Mount Enclosure
• Unspsc: 39121303
• UPC 12 Digit: 785928008603
• SKU Name: robr clw707hpl

Resources

• Manufacturer Spec Sheet
