Rob Roy prll67

Overview

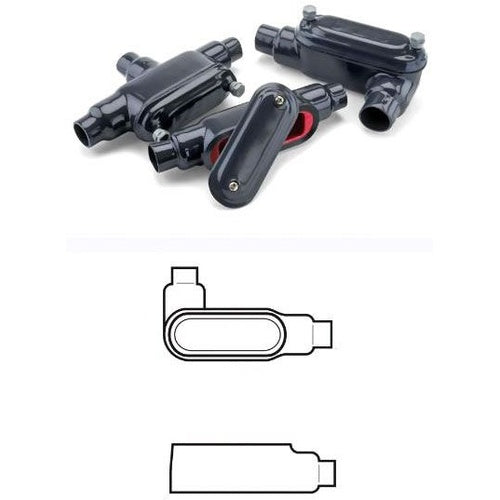

PRLL67 - 2" Form 7 LL Fitting

Product Specifications

• Catalog Number: PRLL67
• UPC / GTIN: 784011203864
• Manufacturer: Plastibond
• Type: Conduit Body
• UNSPSC: 39131708 - Electrical conduit fitting body
• Full Technical Description: CONDUIT BODY, 2 MIL RED URETHANE FERROUS METAL INTERIOR, 40 MIL GRAY PVC FERROUS METAL EXTERIOR MATERIAL; 2 INCH HUB SIZE; SCREW INSTALLATION; LL CONFIGURATION; 2 HUB(S); ETL, UL 514A/D, UL (CANADA AND US), CSA C22.2 APPROVAL; PVC COATED COVER TYPE
• Access Opening: LEFT SIDE
• Cover Type: PVC Coated
• Hub Location: 90 Degree
• Material: 2 MIL Red Urethane Ferrous Metal Interior, 40 MIL Gray PVC Ferrous Metal Exterior
• Number Of Hubs: 2
• Hub Size: 2 INCH
• Description: 2" FORM 7 LL FITTING
• Extra Long Description: 2 MIL RED URETHANE (INTERIOR)/40 MIL GRAY PVC COATED (EXTERIOR) FERROUS METAL MATERIAL; 3.17 INCH WIDTH SIZE; 2 INCH HUB SIZE; SCREW INSTALLATION; LL CONFIGURATION; 2 HUB(S); UL (CANADA AND US), UL 514A/514B/514D, CSA C22.2 APPROVAL; SELF-RETAINING STAINLESS STEEL SCREW COVER TYPE; 90 DEGREE HUB LOCATION; FORM 7 FORM TYPE; LEFT SIDE ACCESS OPENING; APPLICABLE STANDARD ISO 9001
• Long Description: CONDUIT BODY, 2 MIL RED URETHANE FERROUS METAL INTERIOR, 40 MIL GRAY PVC FERROUS METAL EXTERIOR MATERIAL; 2 INCH HUB SIZE; SCREW INSTALLATION; LL CONFIGURATION; 2 HUB(S); ETL, UL 514A/D, UL (CANADA AND US), CSA C22.2 APPROVAL; PVC COATED COVER TYPE
• Product Type: Conduit Body
• Form Type: FORM 7
• Model: PRLL
• GTIN: 00784011203864
• UPC: 784011203864
• Weight per each: 5.7
• Carton: 1
• Package: 2
• Approval: ETL, UL 514A/D, UL (Canada and US), CSA C22.2
• Configuration: LL
• Installation: SCREW
