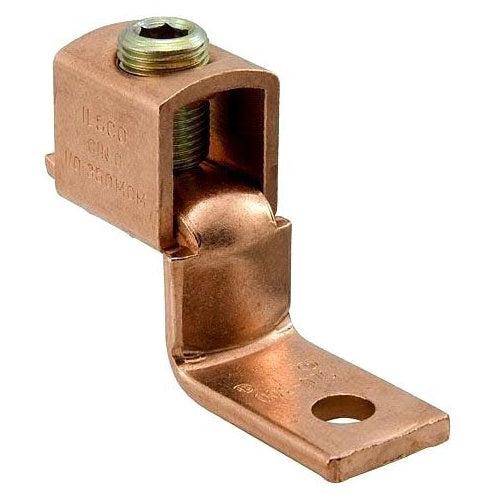

ILSCO SLU-70 8-2Awg Copper Terminal Lug

Overview

Ilsco SLU-70 8-2Awg Copper Terminal Lug

Product Specifications

• UPC: 78366982997
• Pad Type: Offset
• Screw Type: Slot
• Material: Electrolytic Copper
• Number Of Pad Holes: 1
• Pad Size: 21/32 Inch Length x 1/2 Inch Width
• Stud Size: 1/4 Inch
• Overall Length: 1-17/32 Inch
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: RoHS Compliant; Height 1 Inch; Temperature Rating 90 Deg C
• Catalog Number: SLU-70
• Brand Name: Ilsco
• Model: SLU
• Type: V-Bottom Collar, Compact
• Number Of Conductors: 1
• Minimum Conductor Size: 8 AWG
• Maximum Conductor Size: 2 AWG
• Conductor Material: Copper
• Catalog Description: COPPER MECHANICAL LUG OFFSET, CONDUCTOR RANGE 2-8, 1 PORT, 1 HOLE, 1/4IN BOLT SIZE, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: V-Bottom Collar, Compact Type; Electrolytic Copper Material; 1-17/32 Inch Overall Length; 8 AWG min. Conductor Size; 2 AWG Max. Conductor Size; Copper Conductor Material; UL 453G, UL 486A/B, CSA Approval; 1 Conductor(S); 1/4 Inch Stud Size; 21/32 Inch Length X 1/2 Inch Width Pad Size; 1 Pad Hole(S); Offset Pad Type; Slot Screw Type; RoHS Compliant; Height 1 Inch; Temperature Rating 90 Deg C; SLU Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783669829976
• SKU Name: slu70 ilsco
