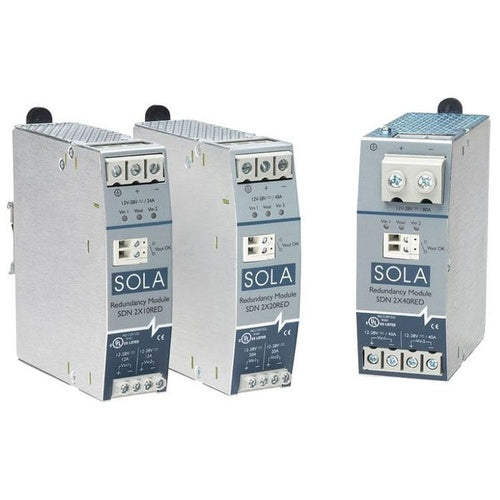

Sola-HD SDN2.5/20RED Xtrn Redundancy Module

Overview

Sola-HD SDN2.5/20RED Xtrn Redundancy Module

Product Specifications

• Application: Process Control, Remote Location, Critical Protection
• Standard: CE
• Type: SDN Series Redundant Options
• Voltage Rating: 35 V
• Width: 1.97 in
• Brand Name: SolaHD
• Cable Size: 16 -10 AWG Solid, 16 - 12 AWG Stranded AWG
• Environmental Conditions: 90 RH Humidity Range
• Height: 4.88 in
• Length: 4.55 in
• Material: Metal
• Mounting: DIN Rail
• Special Features: DC Ok Relay Contact, True Isolation, High Availability
• Catalog Description: SDN SERIES REDUNTANT POWER SUPPLIES, VOLTAGE RATING:35V, AMPERAGE RATING:20A, CABLE SIZE:16 TO 10 AWG SOLID, 16 TO 12 AWG STRANDED, WIDTH:1.97IN, WIDTH:4.55IN, DEPTH:4.88IN
• Category: Power Supply Accessories
• Full Technical Description: Adjustable Single DC Output Type; 1.97 Inch Width X 4.55 Inch Depth X 4.88 Inch Height Size; Screw Terminal Connection Type; CE Approval; Process Control, Remote Location, Critical Production Application; Enclosed Construction; -10 to 60 Deg C Operating Temperature; 20 Amp Input Current; 24 Volt DC Nominal Input Voltage; Accessory Type Redundancy Module; SDN Model
• Manufacturer: Sola / Hevi-Duty Elec
• Manufacturer Brand: Sola/Hevi-Duty Elec
• Sub Category: DC Switch Mode Power Supply
• Unspsc: 39121004
• UPC 12 Digit: 783472100972
• SKU Name: sola sdn2520red

Resources

• Product Spec Sheet
