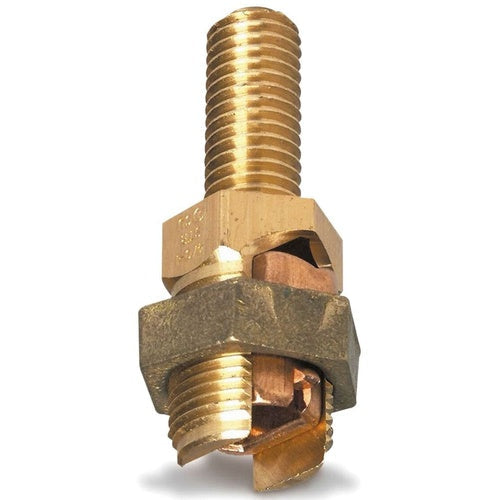

Blackburn SP5SL Service Post/Single 1/0-2 Str/Sol

Overview

Blackburn SP5SL Service Post/Single 1/0-2 Str/Sol

Product Specifications

• UPC: 78378680511
• Approval: UL
• Used On: Cable to Steel Structure/Fence Post/Transformer
• Additional Information: Includes Nut
• Catalog Number: SP5SL
• Model: SP-L
• Conductor Size: 2 to 1/0 AWG Solid/Stranded
• Number Of Conductors: 1
• Stud Diameter: 1/2 Inch-13 TPI
• Stud Length: 1-1/4 Inch
• Material: Bronze
• Standard Package: 200 per Carton
• Catalog Description: LONG STUD SINGLE SERVICE POST CONNECTORS FOR CONDUCTORS 1/0 - 2 STRANDED, 2 SOLID, STUD SIZE 1/2 - 13 X 1 1/4
• Category: Large Terminals & Connectors
• Full Technical Description: Bronze Material; Cable to Steel Structure/Fence Post/Transformer Used on; 1-1/4 Inch Stud Length; UL Approval; 200 Per Carton Standard Package; 1 Conductor(S); 2 to 1/0 AWG Solid/Stranded Conductor Size; 1/2 Inch-13 TPI Stud Diameter; EZGROUND[TM] Brand; Includes Nut; SP-L Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Bar To Flat Surface Post
• Unspsc: 39121613
• UPC 12 Digit: 783786805112
• SKU Name: sp5sl blackburn

Resources

• Manufacturer Spec Sheet
