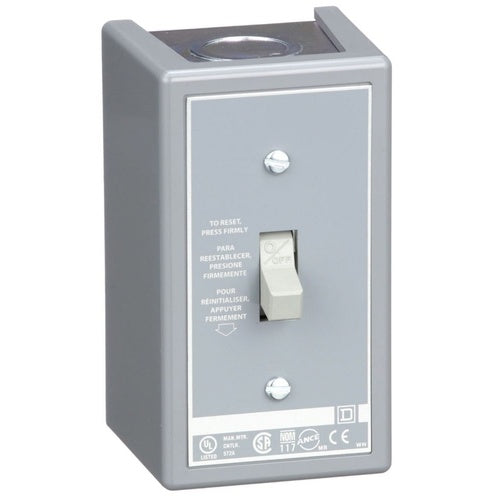

Square D 2510FG1 Manual Starter 277VAC

Overview

Square D 2510FG1 Manual Starter 277VAC

Product Specifications

• UPC: 78590155393
• Overloads: Melting Alloy Thermal Overload Relay
• Construction Standard: NEMA
• Additional Information: Approval UL, CSA; Application Small Machine Tool, Pump, Fan, Conveyor
• Catalog Number: 2510FG1
• Model: 2510
• Type: Non Reversing, Motor Protector
• 1 Phase Hp/Volts: 1 HP at 115/230/277 VAC
• Current Rating: 16 Ampere
• Poles: 1
• Enclosure Type: NEMA 1, Surface
• Operator: Toggle
• Catalog Description: MANUAL STARTER, FRACTIONAL HORSEPOWER, 16A, 1 POLE, 1HP AT 277VAC, TOGGLE OPERATED, NO INDICATOR, NEMA 1 ENCLOSURE
• Category: Manual Starters
• Full Technical Description: Non Reversing, Motor Protector Type; 16 Ampere Current Rating; NEMA 1, Surface Enclosure Type; NEMA Construction Standard; Melting Alloy Thermal Overload Relay Overloads; 1 Poles; 1 HP at 115/230/277 VAC 1 Phase Hp/Volts; Toggle Operator; Approval UL, CSA; Application Small Machine Tool, Pump, Fan, Conveyor; 2510 Model
• Manufacturer: Square D Co.
• Manufacturer Brand: Square D Co.
• Prop 65 Warning: WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING: LEAD AND LEAD COMPOUNDS, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
• Sub Category: Manual Starter
• Unspsc: 39121521
• UPC 12 Digit: 785901553939
• SKU Name: sqd 2510fg1

Resources

• Manufacturer Spec Sheet
