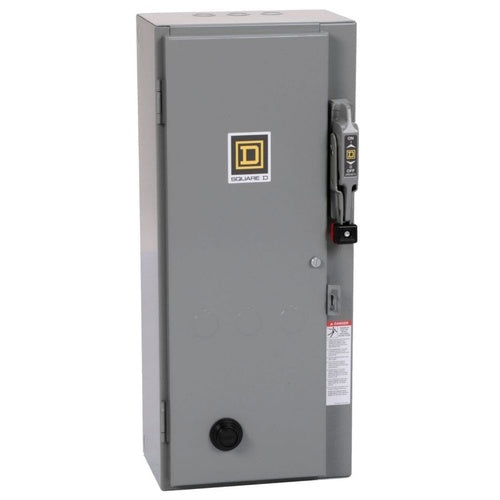

Square D 8538SCG11V02S Starter Motor Control <1000VAC

Overview

Square D 8538SCG11V02S Starter Motor Control <1000VAC

Product Specifications

• UPC: 78590174436
• Enclosure Type: NEMA 1
• Disconnect: Non Fusible
• Overloads: Melting Alloy
• Construction Standard: NEMA
• Additional Information: Approval UL, CSA; Number of Poles 3; Includes Separate Control Circuit; Application Construction, Infrastructure, Industrial Markets, Commercial Office Buildings, Building Automation
• Catalog Number: 8538SCG11V02S
• Model: 8538
• Type: Full Voltage, Non Reversing
• Line Voltage: 600 VAC at 50/60 Hz
• Power Rating/Voltage: 7.5 HP at 200/230 VAC 50/60 Hz, 10 HP at 460/575 VAC 50/60 Hz, 5.5 KW at 208/240 VAC 50/60 Hz, 7.5 KW at 480/600 VAC 50/60 Hz
• Phase: 3
• Coil Voltage: 110 VAC at 50 Hz, 120 VAC at 60 Hz
• Size: NEMA 1
• Catalog Description: NEMA COMBINATION STARTER, TYPE S, NONFUSIBLE DISCONNECT, SIZE 1, 27A, 10HP AT 600VAC, 3 PHASE, 3 POLE, MELTING ALLOTY, 120VAC COIL, NEMA 1 [TAA]
• Category: Nema Combination Starters
• Full Technical Description: Full Voltage, Non Reversing Type; NEMA 1 Size; NEMA 1 Enclosure Type; NEMA Construction Standard; 110 VAC at 50 Hz, 120 VAC at 60 Hz Coil Voltage; 7.5 HP at 200/230 VAC 50/60 Hz, 10 HP at 460/575 VAC 50/60 Hz, 5.5 kW at 208/240 VAC 50/60 Hz, 7.5 kW at 480/600 VAC 50/60 Hz Power Rating/Voltage; Melting Alloy Overloads; 3 Phase; Non Fusible; 600 VAC at 50/60 Hz Line Voltage; Approval UL, CSA; Number of Poles 3; Includes Separate Control Circuit; Application Construction, Infrastructure, Industrial Markets, Commercial Office Buildings, Building Automation; 8538 Model
• Manufacturer: Square D Co.
• Manufacturer Brand: Square D Co.
• Prop 65 Warning: WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING: LEAD AND LEAD COMPOUNDS, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
• Proposition 65 Warning (Ca): WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
• Sub Category: Magnetic Combination Starter
• Unspsc: 39121521
• UPC 12 Digit: 785901744368
• SKU Name: sqd 8538scg11v02s
