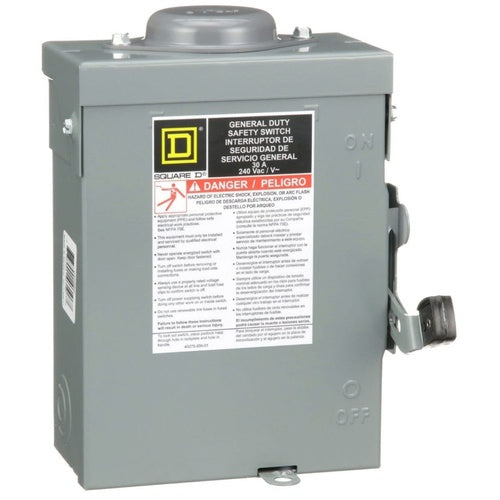

Square D D321NRB 30A-240V-4Sn Raintight Switch

Overview

Square D D321NRB 30A-240V-4Sn Raintight Switch

Product Specifications

• UPC: 78590146106
• Fuse Provision: Fusible
• Fuse Type: Cartridge, Class R
• Neutral Type: Solid
• Enclosure: NEMA 3R
• Size: 7.75 Inch W x 3.75 Inch D x 9.63 Inch H
• Enclosure Material: Phosphatized Steel
• Finish: Gray Baked Enamel
• Approval: UL
• Catalog Number: D321NRB
• Model: Series E3
• Type: General Duty
• Ac Voltage Rating: 240 V
• Current Rating: 30 Ampere
• Power Rating: 1-1/2 HP at 240 VAC 1-Phase (Standard), 3 HP at 240 VAC 3-Phase (Standard), 3 HP at 240 VAC 1-Phase (Maximum), 7-1/2 HP at 240 VAC 3-Phase (Maximum)
• Number Of Poles: 3
• Number Of Wires: 4
• Catalog Description: SAFETY SWITCH, GENERAL DUTY, FUSIBLE, 3 POLE, 4 WIRE, 240VAC, 30A, TYPE 3R, BOLT ON HUB PROV, WITH NEUTRAL
• Category: Fusible General Duty Safety Switches
• Full Technical Description: Single Throw, General Duty, Bolt-on Hub Type; 7.75 Inch Width X 3.75 Inch Depth X 9.63 Inch Height Size; 4 Wire(S); UL Approval; NEMA 3R Enclosure; 30 Amp Current Rating; 1.5 HP at 240 Volt AC 1-Phase, 3 HP at 240 Volt AC 3-Phase, 3 HP at 240 Volt AC 1-Phase, 7.5 HP at 240 Volt AC 3-Phase Power Rating; 3 Pole(S); Class H/K/R Fuse Type; Factory Installed Neutral Type; 240 Volt AC Voltage Rating; Fusible Fuse Provision; Rohs/Reach Compliant; Wire Size 14 to 6 AWG (Copper), 12 to 6 AWG (Aluminum); Mounting Type Surface
• Manufacturer: Square D Co.
• Manufacturer Brand: Square D Co.
• Prop 65 Warning: WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING: LEAD AND LEAD COMPOUNDS, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
• Sub Category: Single Throw Safety/Disconnect Switch
• Unspsc: 39122205
• UPC 12 Digit: 785901461067
• SKU Name: sqd d321nrb
