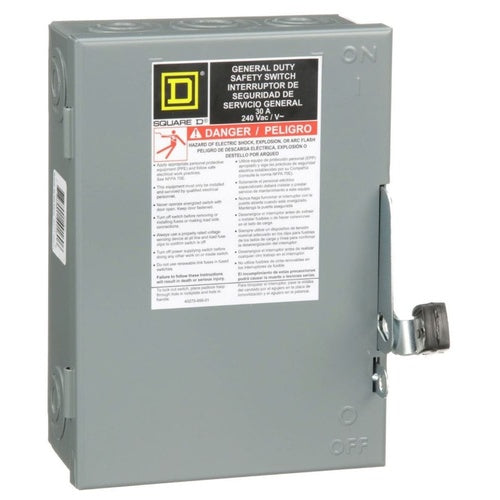

Square D DU321 30A-240V-3P Switch

Overview

Square D DU321 30A-240V-3P Switch

Product Specifications

• UPC: 78590149160
• Fuse Provision: Non-Fusible
• Neutral Type: No
• Enclosure: NEMA 1
• Size: 7.25 Inch W x 3.63 Inch D x 9.25 Inch H
• Enclosure Material: Phosphatized Steel
• Finish: Gray Baked Enamel
• Approval: UL
• Catalog Number: DU321
• Model: Series E2
• Type: General Duty
• Ac Voltage Rating: 240 V
• Current Rating: 30 Ampere
• Power Rating: 3 HP at 240 VAC 1-Phase, 7 1/2 HP at 240 VAC 3-Phase
• Number Of Poles: 3
• Number Of Wires: 3
• Catalog Description: SAFETY SWITCH, GENERAL DUTY, NON FUSIBLE, 3 POLE, 3 WIRE, 240VAC, 30A, TYPE 1
• Category: Non-Fusible General Duty Safety Switches
• Full Technical Description: Single Throw, General Duty Type; 7.25 Inch Width X 3.63 Inch Depth X 9.25 Inch Height Size; 3 Wire(S); UL Approval; NEMA 1 Enclosure; 30 Amp Current Rating; 3 HP at 240 Volt AC 1-Phase, 7.5 HP at 240 Volt AC 3-Phase Power Rating; 3 Pole(S); No Neutral Type; 240 Volt AC Voltage Rating; Non-Fusible Fuse Provision; Rohs/Reach Compliant; Wire Size 14 to 6 AWG (Copper), 12 to 6 AWG (Aluminum); Mounting Type Surface
• Manufacturer: Square D Co.
• Manufacturer Brand: Square D Co.
• Prop 65 Warning: WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING: LEAD AND LEAD COMPOUNDS, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
• Sub Category: Single Throw Safety/Disconnect Switch
• Unspsc: 39122218
• UPC 12 Digit: 785901491606
• SKU Name: sqd du321

Resources

• Manufacturer Spec Sheet
• Technical Drawing
