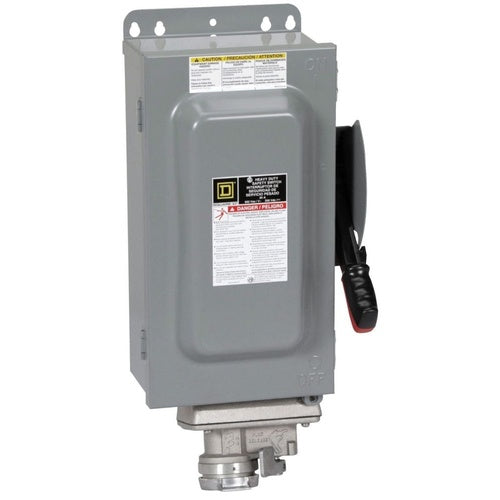

Square D H361AWC Switch Fusible Heavy Duty 30A /Cr-Hi Receptacle

Overview

Square D H361AWC Switch Fusible Heavy Duty 30A /Cr-Hi Receptacle

Product Specifications

• UPC: 78590107697
• Fuse Provision: Class H/J/K/R/T, Fusible
• Material: Galvanized Steel Enclosure
• Enclosure: NEMA 3R/12
• Additional Information: Approval UL; Wire Size 12 to 2 AWG (Aluminum), 14 to 2 AWG (Copper)
• Catalog Number: H361AWC
• Model: F7
• Type: Interlocked
• Constructional Feature: Dusttight, Drip/Rain Proof
• Voltage Rating: 600 VAC 3-Phase
• Current Rating: 30 Ampere
• Number Of Poles: 3
• Number Of Wires: 4
• Catalog Description: SAFETY SWITCH, HEAVY DUTY, FUSIBLE, 30A, 600VAC/DC, 3 POLES, 20HP, NEMA 12K, CROUSE-HINDS ARKTITE
• Category: Fusible Special Application Safety Switches
• Full Technical Description: Interlocked Type; Galvanized Steel Enclosure Material; 4 Wire(S); 600 VAC 3-Phase Voltage Rating; NEMA 3R/12 Enclosure; 30 Ampere Current Rating; 3 Pole(S); Dusttight, Drip/Rain Proof; Class H/J/K/R/T, Fusible Fuse Provision; Approval UL; Wire Size 12 to 2 AWG (Aluminum), 14 to 2 AWG (Copper); F7 Model
• Manufacturer: Square D Co.
• Manufacturer Brand: Square D Co.
• Prop 65 Warning: WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING: LEAD AND LEAD COMPOUNDS, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39122205
• UPC 12 Digit: 785901076971
• SKU Name: sqd h361awc

Resources

• Manufacturer Spec Sheet
• Technical Drawing
