Siemens hnf363r

Overview

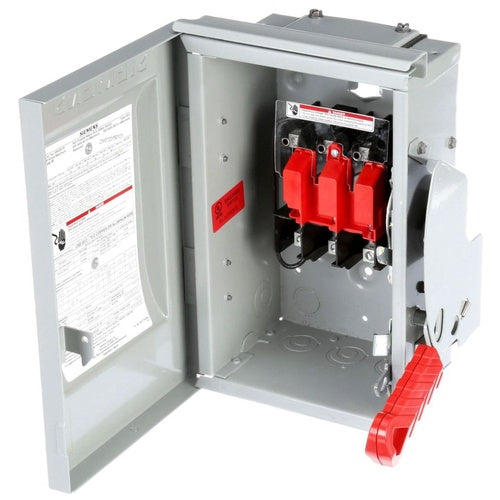

HNF363R Type VBII Enclosed Heavy Duty Low Voltage Non-Fusible Single Throw Safety Switch, 600 V AC, 100 A, 100 hp, 3PST Contact, 3 Poles

Product Specifications

• Catalog Number: HNF363R
• UPC / GTIN: 783643151758
• Manufacturer Brand: Siemens
• UNSPSC: 39122205
• Features: Quick-make, quick break operating mechanism that ensures positive operation; Visible blade, double break switching action; Arc chutes dissipate heat and prolong switch life; Highly visible red handle grip designed for hook stick operation; Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking; Center punch provided for field drilling to allow on padlocking; Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps; Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements; Informative door labeling which includes replacement parts list; Tangential knockouts through 600 A for easy conduit lineup
• Actuator Type: Single Throw
• Amperage Rating: 100 A
• Contact Form: 3PST | TPST
• Country of Origin: Mexico
• Dimensions: 21.95 in H x 10.92 in W x 10.17 in D
• Enclosure Type: NEMA 3R
• ETIM: EC002498
• Frequency Rating: 60 Hz
• Horsepower: 100 hp
• Insulation Type: Non-Insulated
• Material: Steel
• Mounting Type: Surface
• Number of Poles: 3
• Number of Wires: 3
• Phase: 3
• Short Circuit Current Rating: 200 kA
• Temperature Rating: -29 to 85 deg C
• Terminal Type: Lug
• Type: Type VBII Enclosed Heavy Duty Low Voltage Non-Fusible Single Throw
• Voltage Rating: 600 V AC | 600 VAC
