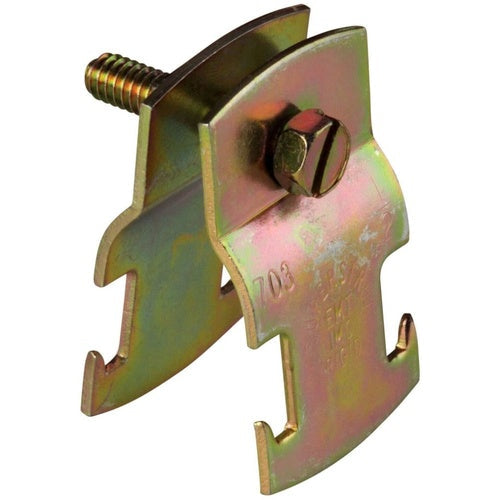

Superstrut 703-1-1/2 Universal ClAMP 14Ga Size 1-1/2" OD 1.738"

Overview

Superstrut 703-1-1/2 Universal Clamp 14Ga Size 1-1/2" OD 1.738"

Product Specifications

• UPC: 61601314370
• Load Rating: 800 Pound
• Catalog Number: 703 1 1/2
• Model: 703
• Type: EMT/IMC/Rigid Conduit/Pipe to Strut
• Construction: 2-Piece
• Material: 14 Gauge Steel
• Finish: GoldGalv
• Trade Size: 1-1/2 Inch
• Outer Diameter: 1.738 to 1.9 Inch
• Catalog Description: CLAMP, UNIVERSAL, 14 GAUGE, SIZE 1-1/2 INCH, PIPE OUTER DIAMETER 1.738 INCHES - 1.900 INCHES, STEEL, FOR USE WITH RIGID OR IMC CONDUIT, PIPE AND ELECTRICAL METAL TUBING
• Category: Channel & Strut Fittings
• Full Technical Description: 2-Piece Type; Goldgalv Finish; 14 Gauge Thickness; 800 lb Load Rating; Channel Mount Mounting Type; 1-1/2 Inch Pipe Size; Steel Clamp Material; 2 Number of Screw/Bolts; GOLDGALV[R] Brand; Application Superstrut Pipe Strap Are Designed to be Twist Inserted Anywhere Along the Slot Side of the Channel; Outer Diameter 1.738 to 1.9 Inch; 703 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Superstrut
• Sub Category: Pipe Clamp
• Unspsc: 31162906
• UPC 12 Digit: 616013143704
• SKU Name: sstrut 70311/2
