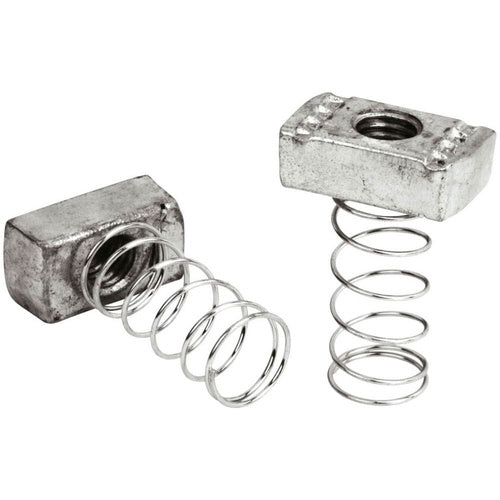

Superstrut A100-1/2 Regular Spring Nut Size 1/2" Steel

Overview

Superstrut A100-1/2 Regular Spring Nut Size 1/2" Steel

Product Specifications

• UPC: 61601329625
• Width: 0.785 Inch
• Material: Mild Steel
• Process: Case Hardened
• Finish: Electrogalvanized
• Additional Information: Used On A/C Series Channel and Insert
• Catalog Number: A100 1/2
• Brand Name: Superstrut
• Model: A-100
• Type: Nuts
• Nominal Diameter: 1/2 Inch
• Tpi: 13
• Thread Series: UNC-2A
• Thickness: 0.358 Inch
• Catalog Description: NUT, SPRING, SIZE 1/2 INCH, STEEL, FOR USE WITH A AND C SERIES CHANNEL AND INSERTS
• Category: Channel & Strut Fittings
• Full Technical Description: Nuts Type; Mild Steel Material; Electrogalvanized Finish; 0.785 Inch; 1/2 Inch Nominal Diameter; Unc-2A Thread Series; 13 TPI; 0.358 Inch Thickness; Case Hardened Process; Superstrut Brand; Used on A/C Series Channel and Insert; A-100 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Superstrut
• Sub Category: Channel Nut - Non Metric
• Unspsc: 31161721
• UPC 12 Digit: 616013296257
• SKU Name: sstrut a1001/2

Resources

• Manufacturer Spec Sheet
