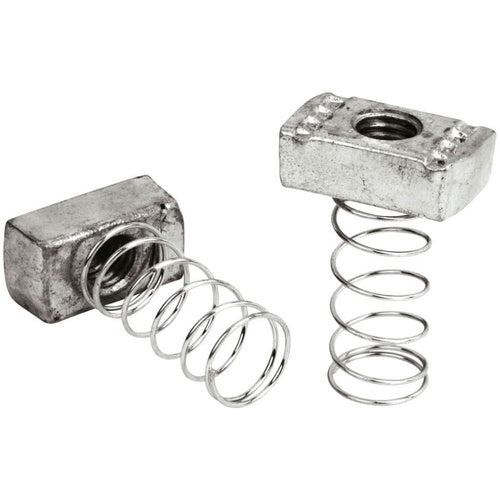

Superstrut A100-1/2SS Regular Spring Nut Size 1/2" Stainless Steel

Overview

Superstrut A100-1/2SS Regular Spring Nut Size 1/2" Stainless Steel

Product Specifications

• UPC: 61601329612
• Width: 0.785 Inch
• Material: 304 Stainless Steel
• Process: Case Hardened
• Additional Information: Used On A/C Series Channel and Insert
• Catalog Number: A100 1/2SS
• Brand Name: Superstrut
• Model: A-100
• Type: Nuts
• Nominal Diameter: 1/2 Inch
• Tpi: 13
• Thread Series: UNC-2A
• Thickness: 0.358 Inch
• Catalog Description: NUT, SPRING, SIZE 1/2 INCH, STAINLESS STEEL 316, FOR USE WITH A AND C SERIES CHANNEL AND INSERTS
• Category: Channel & Strut Fittings
• Full Technical Description: With Spring Type; 304 Stainless Steel Material; 1.338 Inch; 1/2 Inch Nominal Diameter; Unc Thread Series; 13 TPI; Height 0.358 Inch; Application A and C Series Channel and Inserts; A100 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Superstrut
• Sub Category: Channel Nut - Non Metric
• Unspsc: 31161721
• UPC 12 Digit: 616013296127
• SKU Name: sstrut a1001/2ss

Resources

• Manufacturer Spec Sheet
