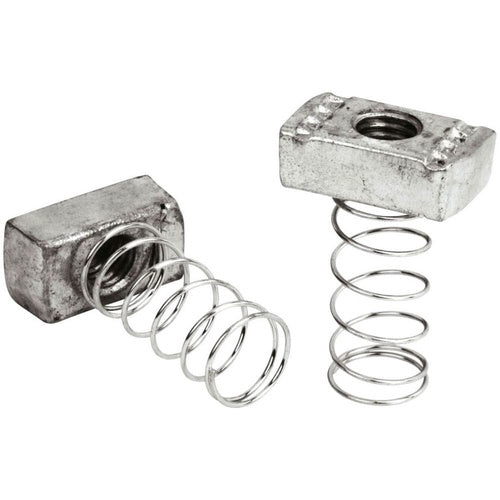

Superstrut A100-1/4 Regular Spring Nut Size 1/4" Steel

Overview

Superstrut A100-1/4 Regular Spring Nut Size 1/4" Steel

Product Specifications

• UPC: 61601329613
• Width: 0.785 Inch
• Material: Mild Steel
• Process: Case Hardened
• Finish: Electrogalvanized
• Additional Information: Used On A/C Series Channel and Insert
• Catalog Number: A100 1/4
• Brand Name: Superstrut
• Model: A-100
• Type: Nuts
• Nominal Diameter: 1/4 Inch
• Tpi: 20
• Thread Series: UNC-2A
• Thickness: 0.238 Inch
• Catalog Description: NUT, SPRING, SIZE 1/4 INCH, STEEL, FOR USE WITH A AND C SERIES CHANNEL AND INSERTS
• Category: Channel & Strut Fittings
• Full Technical Description: With Spring Type; Carbon Steel Material; Goldgalv Finish; 1.338 Inch; 1/4 Inch Nominal Diameter; Unc Thread Series; 20 TPI; Case Hardened Process; GOLDGALV[R] Brand; Height 0.238 Inch; Application A and C Series Channel and Inserts; A100 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Superstrut
• Sub Category: Channel Nut - Non Metric
• Unspsc: 31161721
• UPC 12 Digit: 616013296134
• SKU Name: sstrut a1001/4

Resources

• Manufacturer Spec Sheet
