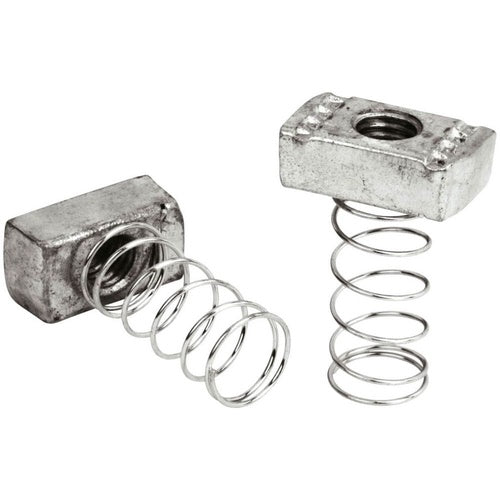

Superstrut A100-3/8 Regular Spring Nut Size 3/8" Steel

Overview

Superstrut A100-3/8 Regular Spring Nut Size 3/8" Steel

Product Specifications

• UPC: 61601329621
• Finish: Zinc Plated
• Additional Information: Height 0.358 Inch; Application All Series Channel and Insert
• Catalog Number: A100 3/8
• Type: Universal, With Spring
• Nominal Diameter: 3/8 Inch
• Tpi: 16
• Thread Series: UNC
• Width: 1.338 Inch
• Material: Carbon Steel
• Process: Case Hardened
• Catalog Description: NUT, SPRING, SIZE 3/8 INCH, STEEL, FOR USE WITH A AND C SERIES CHANNEL AND INSERTS
• Category: Channel & Strut Fittings
• Full Technical Description: Universal, With Spring Type; Carbon Steel Material; Zinc Plated Finish; 1.338 Inch; 3/8 Inch Nominal Diameter; Unc Thread Series; 16 TPI; Case Hardened Process; Height 0.358 Inch; Application All Series Channel and Insert
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Superstrut
• Sub Category: Channel Nut - Non Metric
• Unspsc: 31161721
• UPC 12 Digit: 616013296219
• SKU Name: sstrut a1003/8

Resources

• Manufacturer Spec Sheet
