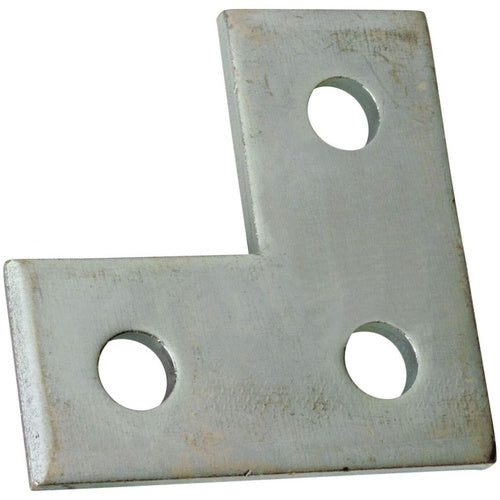

Superstrut AB219EG Corner Plate Height 3-1/2" Length 3-1/2" Electro-Galvanized

Overview

Superstrut AB219EG Corner Plate Height 3-1/2" Length 3-1/2" Electro-Galvanized

Product Specifications

• UPC: 61601301096
• Material: Carbon Steel
• Process: Hot Rolled
• Finish: SilverGalv
• Weight: 55 Pound per 100
• Additional Information: Hole Spacing Size 13/16 Inch (From End), 1-7/8 Inch (Center); Application Metal Framing
• Catalog Number: AB219EG
• Type: Corner
• Number Of Holes: 3
• Hole/Slot Size: 1-5/8 Inch Diameter
• Length: 3-1/2 Inch
• Width: 1-5/8 Inch
• Thickness: 1/4 Inch
• Channel Width: 1-5/8 Inch
• Catalog Description: PLATE, CORNER, HEIGHT 3-1/2 INCHES, LENGTH 3-1/2 INCHES, WIDTH 1-5/8 INCHES, HOLE DIAMETER 1-5/8 INCHES, ELECTRO-GALVANIZED STEEL
• Category: Channel & Strut Fittings
• Full Technical Description: Corner Type; Carbon Steel Material; Silvergalv Finish; 3-1/2 Inch; 1-5/8 Inch; 1-5/8 Inch Channel Width; 1/4 Inch Thickness; Hot Rolled Process; 55 Pound Per 100 Weight; 3 Hole(S); 1-5/8 Inch Diameter Hole/Slot Size; SILVERGALV[TM] Brand; Hole Spacing Size 13/16 Inch (From End), 1-7/8 Inch (Center); Application Metal Framing
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Superstrut
• Sub Category: Channel/Strut Flat Plate
• Unspsc: 31162307
• UPC 12 Digit: 616013010969
• SKU Name: sstrut ab219eg

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
