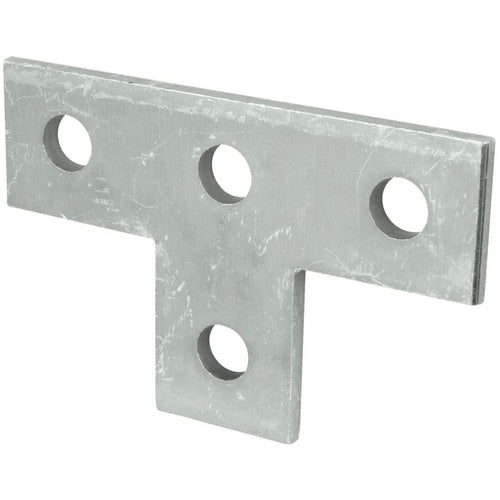

Superstrut AB220HDG Tee Plate Height 3-1/2" Length 5-3/8" Hot-Dip Galvanized

Overview

Superstrut AB220HDG Tee Plate Height 3-1/2" Length 5-3/8" Hot-Dip Galvanized

Product Specifications

• UPC: 61601308217
• Channel Width: 1-5/8 Inch
• Material: Carbon Steel
• Process: Hot Rolled
• Finish: Hot Dip Galvanized
• Additional Information: Hole Spacing Size 13/16 Inch (From-End), 1-7/8 Inch (Center); Application Metal Framing
• Catalog Number: AB220HDG
• Model: 200
• Type: Tee
• Number Of Holes: 4
• Hole/Slot Size: 9/16 Inch Diameter
• Length: 5-3/8 Inch
• Width: 1-5/8 Inch
• Thickness: 1/4 Inch
• Catalog Description: PLATE, TEE, HEIGHT 3-1/2 INCHES, LENGTH 5-3/8 INCHES, WIDTH 1-5/8 INCHES, HOLE DIAMETER 9/16 INCHES, HOT-DIP GALVANIZED STEEL
• Category: Channel & Strut Fittings
• Full Technical Description: Tee Type; Carbon Steel Material; Hot Dip Galvanized Finish; 5-3/8 Inch; 1-5/8 Inch; 1-5/8 Inch Channel Width; 1/4 Inch Thickness; Hot Rolled Process; 4 Hole(S); 9/16 Inch Diameter Hole/Slot Size; Hole Spacing Size 13/16 Inch (From-End), 1-7/8 Inch (Center); Application Metal Framing; 200 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Superstrut
• Sub Category: Channel/Strut Flat Plate
• Unspsc: 31162307
• UPC 12 Digit: 616013082171
• SKU Name: sstrut ab220hdg

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
