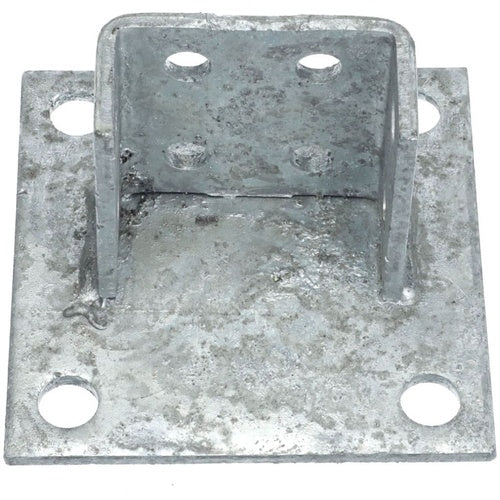

Superstrut AP-235SQ-HDG Hot-Dip Galvanized Double Strut Post Base

Overview

Superstrut AP-235SQ-HDG Hot-Dip Galvanized Double Strut Post Base

Product Specifications

• UPC: 61601303345
• Pad Size: 6 INCH L X 6 INCH W
• Number Of Pad Mounting Holes: 4
• Pad Mounting Hole Size: 3/4 INCH DIA
• Thickness: 1/4 INCH
• Material: CARBON STEEL
• Process: HOT ROLLED
• Finish: HOT DIP GALVANIZED
• Additional Information: HOLE SPACING FROM END 13/16 INCH; HOLE SPACING CENTERS 1-7/8 INCH
• Catalog Number: AP 235SQ HDG
• Model: AP
• Type: U POST, SQUARE BASE
• Number Of Channels: 2
• Channel Position: CENTERED
• Post Height: 3-1/2 INCH
• Number Of Channel Mounting Holes: 8
• Channel Mounting Hole Size: 9/16 INCH DIA
• Catalog Description: CONNECTOR, SQUARE POST BASE, POST HEIGHT 3-1/2 INCHES, POST WIDTH 3-5/16 INCHES, BASE LENGTH 6 INCHES, BASE HEIGHT 6 INCHES, HOLE DIAMETER 3/4 INCH, HOT-DIP GALVANIZED STEEL
• Category: Channel & Strut Fittings
• Full Technical Description: U Post, Square Base Type; Carbon Steel Material; Hot Dip Galvanized Finish; 3-1/2 Inch Post Height; 1/4 Inch Thickness; Hot Rolled Process; 6 Inch L X 6 Inch W Pad Size; 2 Channel(S); 9/16 Inch Dia Channel Mounting Hole Size; Centered Channel Position; 4 Pad Mounting Hole(S); 3/4 Inch Dia Pad Mounting Hole Size; 8 Channel Mounting Hole(S); Hole Spacing From End 13/16 Inch; Hole Spacing Centers 1-7/8 Inch; AP Model
• Made In Usa: Yes
• Manufacturer: THOMAS & BETTS SUPERSTRUT
• Manufacturer Brand: T&B Superstrut
• Sub Category: Channel/Strut Post Base
• Unspsc: 31162502
• UPC 12 Digit: 616013033456
• SKU Name: sstrut ap235sqhdg
