Super Strut u501

Overview

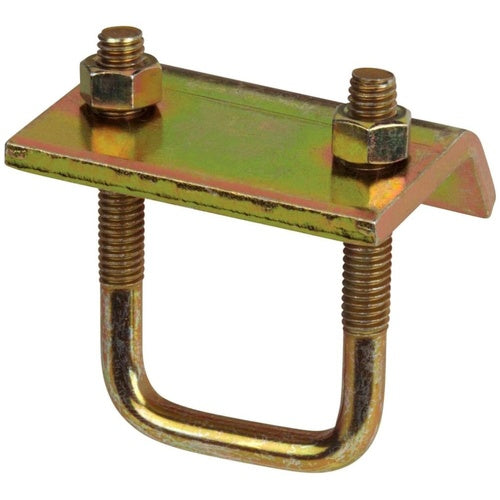

Superstrut U501-HDG Hot-Dip Galvanized U-Bolt Beam Clamp

Product Specifications

• Part Number: U501-HDG
• UPC / GTIN: 61601328853
• UPC: 61601328853
• Catalog Number: U501 HDG
• Model: U501
• Load Capacity: 2150 Pound
• Material: Carbon Steel
• Process: Hardened
• Finish: Hot Dip Galvanized
• Application: Mounting Channel
• Additional Information: Height 3-3/16 Inch; Plate Size 2-3/8 Inch Length x 3 Inch Width x 13/16 Inch Thickness; Used On A-1200/A-1400/B-1200/B-1400/C-1200/B-1402 Series Channel
• CATALOG DESCRIPTION: CLAMP, CHANNEL TO BEAM, HEIGHT 3-3/16 INCHES, PLATE WIDTH 3 INCHES, PLATE LENGTH 2-3/8 INCHES, PLATE THICKNESS 13/16 INCH, HOT-DIP GALVANIZED STEEL, FOR USE WITH A-1200, B-1200, C-1200, A-1400, B-1400 AND B-1402 SERIES CHANNELS
• Full Technical Description: Carbon Steel Material; Hot Dip Galvanized Finish; Mounting Channel Application; Hardened Process; 2150 Pound Load Capacity; Height 3-3/16 Inch; Plate Size 2-3/8 Inch Length X 3 Inch Width X 13/16 Inch Thickness; Used on A-1200/A-1400/B-1200/B-1400/C-1200/B-1402 Series Channel; U501 Model
• Made in USA: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Superstrut
• Product Description: Superstrut U501-HDG Hot-Dip Galvanized U-Bolt Beam Clamp
• UNSPSC: 31162905
• UPC 12 Digit: 616013288535
