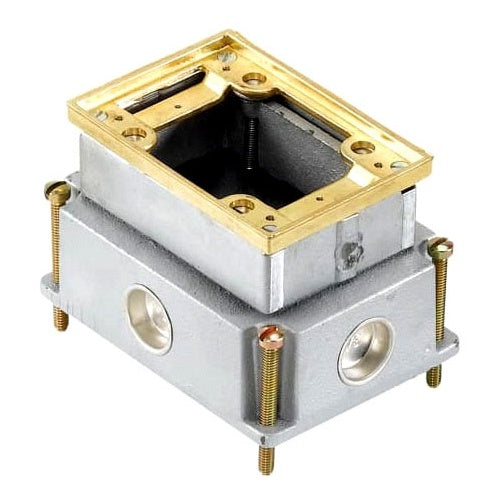

Steel City 641 1-G Flush Service Floor-Box 35Cu Hub3/4"

Overview

Steel City 641 1-G Flush Service Floor-Box 35Cu Hub3/4"

Product Specifications

• UPC: 78599161744
• Material: POLISHED BRASS CAST IRON
• Number Of Gangs: 1
• Service Type: FLUSH
• Capacity: 35 CU INCH
• Installation: CONCRETE FLOOR
• Device Type: COMMUNICATION, DATA, POWER, VOICE, SINGLE RECEPTACLE
• Hub Size: 3/4 INCH
• Cover Type: P64
• Cover Mounting: CARPET/TILE
• Standard Package: 4
• Catalog Number: 641
• Approval: UL, CSA
• Additional Information: ENVIRONMENTAL CONDITIONS CORROSION RESISTANT, WATERTIGHT
• Model: 640
• Type: FULLY ADJUSTABLE
• Shape: RECTANGULAR
• Length: 5-1/2 INCH
• Width: 4 INCH
• Depth: 3-5/8 INCH
• Adjustment Size: 2-1/2 INCH PRE-POUR, 5/8 INCH POST-POUR
• Catalog Description: SINGLE GANG FLUSH SERVICE FLOOR BOX, 35 CUBIC INCHES, LENGTH 5-1/2 INCHES, WIDTH 4 INCHES, DEPTH 3-5/8 INCHES, 3/4 INCH CONDUIT HUBS, CAST IRON
• Category: Floor Boxes & Accessories
• Full Technical Description: Fully Adjustable Type; Polished Brass Cast Iron Material; 5-1/2 Inch; 4 Inch; 3-5/8 Inch; Rectangular Shape; 3/4 Inch Hub Size; Concrete Floor Installation; 1 Gang(S); UL, CSA Approval; P64 Cover Type; 4 Standard Package; 35 Cu Inch Capacity; Flush Service Type; Communication, Data, Power, Voice, Single Receptacle Device Type; Carpet/Tile Cover Mounting; 2-1/2 Inch Pre-Pour, 5/8 Inch Post-Pour Adjustment Size; MOPTITE[R] Brand; Environmental Conditions Corrosion Resistant, Watertight; 640 Model
• Made In Usa: Yes
• Manufacturer: THOMAS & BETTS STEEL CITY/KINDORF
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Floor Box
• Unspsc: 39121307
• UPC 12 Digit: 785991617443
• SKU Name: stlcity 641

Resources

• Product Spec Sheet
