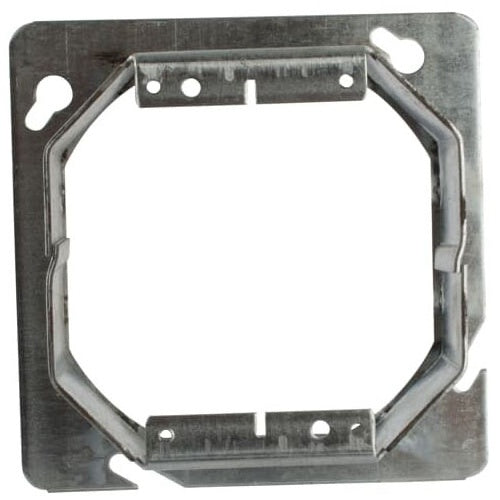

Steel City 72C53-1-1/2 Steel Cover 2-Gang 19Cu-In 4-11/16X1-1/2R

Overview

Steel City 72C53-1-1/2 Steel Cover 2-Gang 19Cu-In 4-11/16X1-1/2R

Product Specifications

• UPC: 78599114670
• Capacity: 19 Cu Inch
• Standard Package: 10 per Carton
• Approval: UL 514A, CSA, FS W-J-800
• Catalog Number: 72 C 53 1 1/2
• Model: Series 72
• Type: Raised
• Opening Type: (2) Device
• Box Size: 4-11/16 Inch
• Corner Type: Square Cut
• Raised: 1-1/2 Inch
• Material: Hot Rolled Pre-Galvanized AISI C-1008, ASTM G90-U 0.062 Inch Steel
• Catalog Description: TWO GANG SQUARE CUT TILE WALL COVER, 19 CUBIC INCHES, 4-11/16 INCH SQUARE X 1-1/2 INCH RAISED, PRE GALVANIZED STEEL
• Category: Bar Hangers & Outlet Box Accy
• Full Technical Description: Raised Type; Hot Rolled Pre-Galvanized AISI C-1008, ASTM G90-U 0.062 Inch Steel Material; UL 514A, CSA, FS W-J-800 Approval; 10 Per Carton Standard Package; 19 Cu Inch Capacity; 4-11/16 Inch Box Size; (2) Device Opening Type; 1-1/2 Inch Raised; Square Cut Corner Type; SERIES 72 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Square Box Plaster Ring - Steel
• Unspsc: 39121304
• UPC 12 Digit: 785991146707
• SKU Name: stlcity 72c5311/2

Resources

• Manufacturer Spec Sheet
