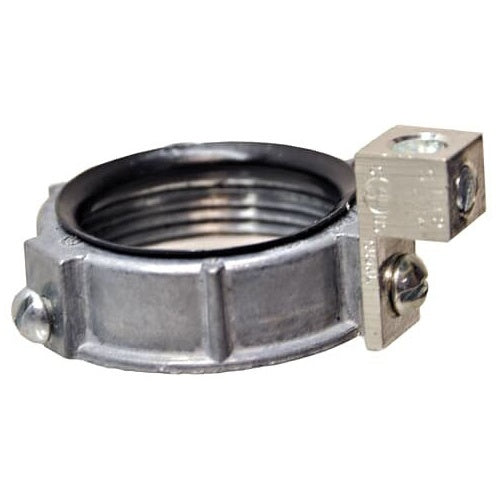

Steel City BG802A Insulated Grounding Bushing 3/4" Malleable Iron

Overview

Steel City BG802A Insulated Grounding Bushing 3/4" Malleable Iron

Product Specifications

• UPC: 78599190691
• Standard Package: 500 per Carton per Pack
• Approval: UL
• Used On: IMC/Rigid Conduit
• Catalog Number: BG802A
• Type: Threaded
• Trade Size: 3/4 Inch
• Wire Size: 14 to 6 AWG
• Lug Type: Aluminum
• Conductor Material: Aluminum/Copper
• Throat Type: Insulated
• Material: Zinc Plated Malleable Iron (Body), Thermoplastic (Liner)
• Catalog Description: BUSHING, INSULATED GROUNDING, TRADE SIZE 3/4 INCH, GROUNDING LUG WIRE SIZE 14 AWG - 6 AWG, DIE CAST ZINC, FOR USE WITH RIGID/IMC CONDUIT.
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Type; Zinc Plated Malleable Iron (Body), Thermoplastic (Liner) Material; Imc/Rigid Conduit Used on; 14 to 6 AWG Wire Size; Aluminum/Copper Conductor Material; UL Approval; 500 Per Carton Per Pack Standard Package; 3/4 Inch Trade Size; Insulated Throat Type; Aluminum Lug Type
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 785991906912
• SKU Name: stlcity bg802a

Resources

• Manufacturer Spec Sheet
