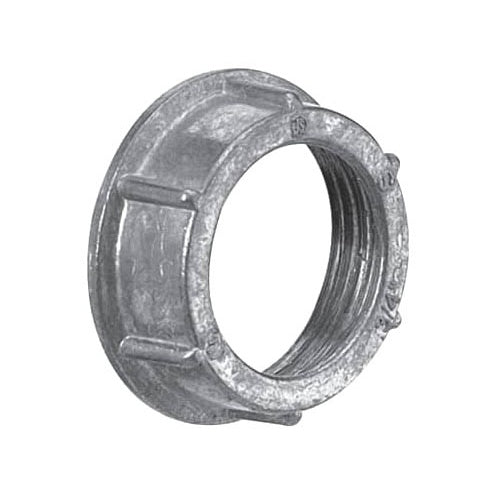

Steel City BU208 3" Bushing, Rigid/Imc, Die-Cast, Heavy Reinforced Rib

Overview

Steel City BU208 3" Bushing, Rigid/Imc, Die-Cast, Heavy Reinforced Rib

Product Specifications

• UPC: 78599190743
• Material: Die Cast Zinc
• Standard Package: 25
• Approval: UL
• Used On: Rigid Conduit/IMC
• Catalog Number: BU208
• Model: BU
• Type: Threaded Female
• Trade Size: 3 Inch
• Diameter: 3.84 Inch
• Height: 0.85 Inch
• Throat Type: Non-Insulated
• Temperature Rating: 105 Deg C
• Catalog Description: BUSHING, CONDUIT, TRADE SIZE 3 INCH, WIDTH 3.84 INCH, THICKNESS 0.85 INCH, DIE-CAST ZINC WITH HEAVY REINFORCED RIBS, FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Female Type; Die Cast Zinc Material; 0.85 Inch; Rigid Conduit/Imc Used on; UL Approval; 3.84 Inch Diameter; 105 Deg C Temperature Rating; 25 Standard Package; 3 Inch Trade Size; Non-Insulated Throat Type; BU Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Rigid/Emt Conduit Bushing
• Unspsc: 39121312
• UPC 12 Digit: 785991907438
• SKU Name: stlcity bu208

Resources

• Manufacturer Spec Sheet
