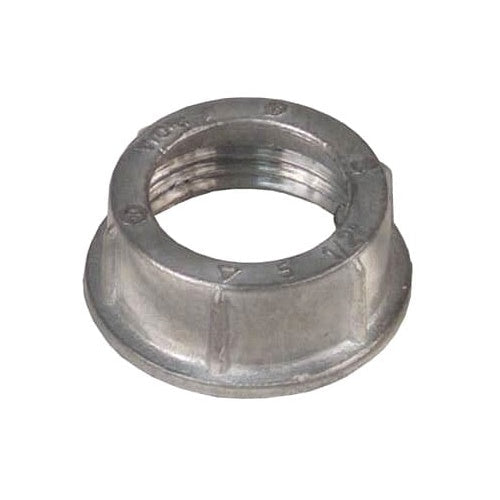

Steel City BU808 3" Bushing, Rigid/Imc, Die-Cast, Insulated

Overview

Steel City BU808 3" Bushing, Rigid/Imc, Die-Cast, Insulated

Product Specifications

• UPC: 78599190753
• Material: Die Cast Zinc
• Standard Package: 25
• Approval: UL
• Used On: Rigid Conduit/IMC
• Catalog Number: BU808
• Model: BU
• Type: Threaded Female
• Trade Size: 3 Inch
• Diameter: 3.87 Inch
• Height: 0.85 Inch
• Throat Type: Thermoplastic Insulated
• Temperature Rating: 105 Deg C
• Catalog Description: BUSHING, INSULATED CONDUIT, TRADE SIZE 3 INCHES, WIDTH 3.87 INCH, THICKNESS 0.85 INCH, DIE-CAST ZINC, FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Female Type; Die Cast Zinc Material; 0.85 Inch; Rigid Conduit/Imc Used on; UL Approval; 3.87 Inch Diameter; 105 Deg C Temperature Rating; 25 Standard Package; 3 Inch Trade Size; Thermoplastic Insulated Throat Type; BU Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Rigid/EMT Conduit Bushing
• Unspsc: 39121312
• UPC 12 Digit: 785991907537
• SKU Name: stlcity bu808

Resources

• Manufacturer Spec Sheet
