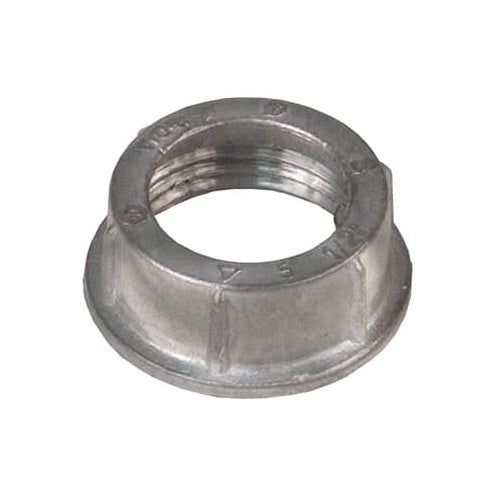

Steel City BU810 4" Bushing, Rigid/Imc, Die-Cast, Insulated

Overview

Steel City BU810 4" Bushing, Rigid/Imc, Die-Cast, Insulated

Product Specifications

• UPC: 78599190755
• Material: Die Cast Zinc
• Standard Package: 10
• Approval: UL
• Used On: Rigid Conduit/IMC
• Catalog Number: BU810
• Model: BU
• Type: Threaded Female
• Trade Size: 4 Inch
• Diameter: 5 Inch
• Height: 0.93 Inch
• Throat Type: Thermoplastic Insulated
• Temperature Rating: 105 Deg C
• Catalog Description: BUSHING, INSULATED CONDUIT, TRADE SIZE 4 INCHES, WIDTH 5.00 INCH, THICKNESS 0.93 INCH, DIE-CAST ZINC, FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Female Type; Die Cast Zinc Material; 0.93 Inch; Rigid Conduit/Imc Used on; UL Approval; 5 Inch Diameter; 105 Deg C Temperature Rating; 10 Standard Package; 4 Inch Trade Size; Thermoplastic Insulated Throat Type; BU Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Rigid/EMT Conduit Bushing
• Unspsc: 39121312
• UPC 12 Digit: 785991907551
• SKU Name: stlcity bu810
