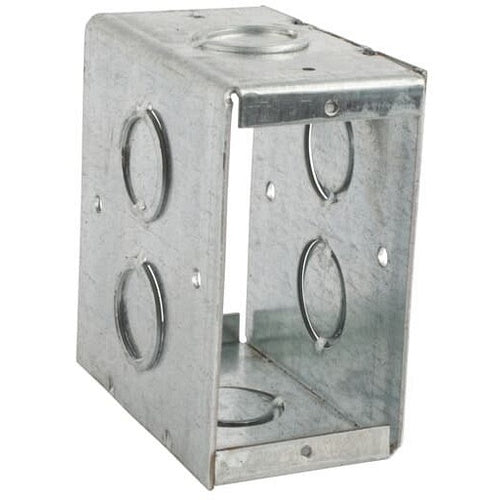

Steel City CBTW-4 Thruwall Box For Block 24Cu Galvsteel

Overview

Steel City CBTW-4 Thruwall Box For Block 24Cu Galvsteel

Product Specifications

• UPC: 78599111140
• Number Of Gangs: 1
• Material: Hot Rolled Pre-Galvanized AISI C-1008, ASTM G90-U 0.062 Inch Steel
• Capacity: 24 Cu Inch
• Approval: UL 514A, CSA, FS W-J-800
• Additional Information: Construction Welded
• Catalog Number: CBTW 4
• Type: Through Wall
• Depth: 3-1/2 Inch
• Height: 3-11/16 Inch
• Width: 2-1/4 Inch
• Knockout Location: (4) Sides, (2) Ends
• Knockout Size: (4) (1/2 Inch - 3/4 Inch) Concentric Knockout Sides, (2) (1/2 Inch - 3/4 Inch) Concentric Knockout Ends
• Number Of Knockouts: 6
• Catalog Description: THRU-WALL BOX FOR CONCRETE BLOCK, 24 CUBIC INCHES, 3-11/16 INCHES LONG X 2-1/8 INCHES WIDE X 3-1/2 INCHES DEEP, 1/2 INCH AND 3/4 INCH CONCENTRIC KNOCKOUTS, GALVANIZED STEEL, FOR USE WITH CONCRETE BLOCK
• Category: Steel Outlet Boxes
• Full Technical Description: Through Wall Type; Hot Rolled Pre-Galvanized AISI C-1008, ASTM G90-U 0.062 Inch Steel Material; 2-1/4 Inch; 3-11/16 Inch; 3-1/2 Inch; 1 Gang(S); UL 514A, CSA, FS W-J-800 Approval; 24 Cu Inch Capacity; (4) (1/2 Inch - 3/4 Inch) Concentric Knockout Sides, (2) (1/2 Inch - 3/4 Inch) Concentric Knockout Ends Knockout Size; 6 Knockout(S); (4) Sides, (2) Ends Knockout Location; Construction Welded
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Masonry Box - Steel
• Unspsc: 39121333
• UPC 12 Digit: 785991111408
• SKU Name: stlcity cbtw4

Resources

• Manufacturer Spec Sheet
