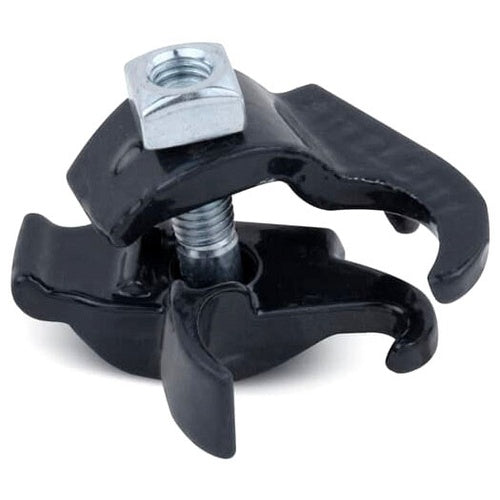

Steel City EC-1-1/2 Pipe Support Conduit Size 1-1/2" Malleable Iron

Overview

Steel City EC-1-1/2 Pipe Support Conduit Size 1-1/2" Malleable Iron

Product Specifications

• UPC: 78599150010
• Finish: Galvanized
• Application: Mounting Pipe Conduit
• Additional Information: Pipe Size 1-1/2 Inch
• Catalog Number: EC 1 1/2
• Brand Name: Steel City
• Model: EC
• Type: Edge
• Maximum Jaw Capacity: 1.9 Inch
• Supplied With Screw: Yes
• Screw Type: Hex Head
• Material: Malleable Iron
• Catalog Description: SUPPORT, PIPE, OUTER DIAMETER OF CONDUIT OR PIPE 1.900, NOMINAL CONDUIT SIZE 1-1/2 INCH, MALLEABLE IRON, FOR MOUNTING PIPE OR CONDUIT VERTICALL ACROSS BEAM
• Category: Channel & Strut Fittings
• Full Technical Description: Edge Type; Malleable Iron Material; Galvanized Finish; 1.9 Inch Max. Jaw Capacity; Mounting Pipe Conduit Application; Hex Head Screw Type; Yes Supplied With Screw; Pipe Size 1-1/2 Inch; EC Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Beam Clamp
• Unspsc: 39121701
• UPC 12 Digit: 785991500103
• SKU Name: stlcity ec11/2

Resources

• Manufacturer Spec Sheet
