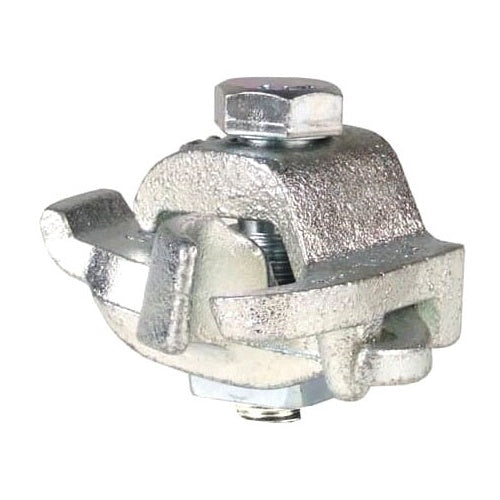

Steel City EC-2-1/2 Pipe Support Conduit Size 2-1/2" Malleable Iron

Overview

Steel City EC-2-1/2 Pipe Support Conduit Size 2-1/2" Malleable Iron

Product Specifications

• UPC: 78599150014
• Additional Information: PIPE SIZE 2-1/2 INCH
• Catalog Number: EC 2 1/2
• Model: EC
• Type: EDGE
• Maximum Jaw Capacity: 2.875 INCH
• Supplied With Screw: YES
• Screw Type: HEX HEAD
• Material: MALLEABLE IRON
• Application: MOUNTING PIPE CONDUIT
• Catalog Description: SUPPORT, PIPE, OUTER DIAMETER OF CONDUIT OR PIPE 2.875, NOMINAL CONDUIT SIZE 2-1/2 INCH, MALLEABLE IRON, FOR MOUNTING PIPE OR CONDUIT VERTICALL ACROSS BEAM
• Category: Channel & Strut Fittings
• Full Technical Description: Edge Type; Malleable Iron Material; 2.875 Inch Max. Jaw Capacity; Mounting Pipe Conduit Application; Hex Head Screw Type; Yes Supplied With Screw; Pipe Size 2-1/2 Inch; EC Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Beam Clamp
• Unspsc: 39121701
• UPC 12 Digit: 785991500141
• SKU Name: stlcity ec21/2

Resources

• Product Spec Sheet
