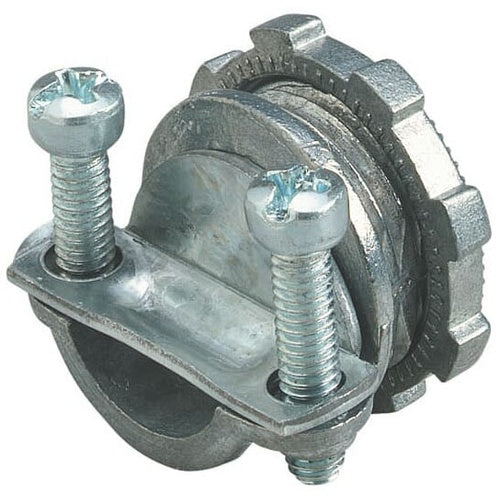

Steel City NC303 1" Connector, ClAMP, Use W/ Non-Metallic, Die-Cast

Overview

Steel City NC303 1" Connector, Clamp, Use W/ Non-Metallic, Die-Cast

Product Specifications

• UPC: 78599142755
• Standard Package: 250 per Outer Pack
• Approval: UL, CSA
• Catalog Number: NC303
• Brand Name: Steel City
• Model: NC
• Installation: 2-Screw, Clamp
• Trade Size: 1 Inch
• Cable Type: Non-Metallic Sheathed Cable
• Cable Size: 0.34 to 0.94 Inch
• Material: Die-Cast Zinc
• Catalog Description: CONNECTOR, CLAMP-TYPE, CONDUIT SIZE 1 INCH, CLAMPING RANGE 0.34 INCH - 0.94 INCH, WIDTH 1.95 INCHES, DIE CAST ZINC
• Category: Non-Metallic Cable Cable Fittings
• Full Technical Description: Die-Cast Zinc Material; 2-Screw, Clamp Installation; Non-Metallic Sheathed Cable Cable Type; 0.34 to 0.94 Inch Cable Size; UL, CSA Approval; 250 Per Outer Pack Standard Package; 1 Inch Trade Size; NC Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Nonmetallic Sheathed Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 785991427554
• SKU Name: stlcity nc303

Resources

• Manufacturer Spec Sheet
