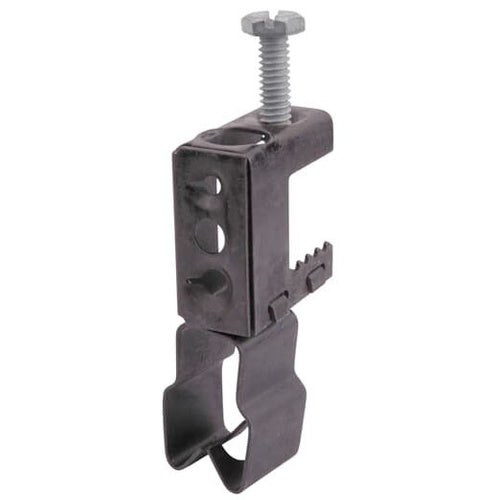

Steel City SSF-BBC-C1/2-3/4V Conduit Beam ClAMP 1/2-3/4" Flange 1/2"

Overview

Steel City SSF-BBC-C1/2-3/4V Conduit Beam Clamp 1/2-3/4" Flange 1/2"

Product Specifications

• UPC: 78599120167
• Additional Information: Approval UL, CUL; Rod Size 1/4 Inch, 3/8 Inch; Conduit Size 1/2 to 3/4 Inch
• Catalog Number: SSF-BBC-C1/2 3/4V
• Model: SSF-BBC
• Maximum Jaw Capacity: 1/2 Inch
• Supplied With Screw: Yes
• Screw Type: Hex Head
• Screw Size: 1/4 Inch-20 TPI or #10-24 TPI
• Load Capacity: 100 Lb
• Material: Steel
• Catalog Description: CLAMP, CONDUIT TO BEAM, CONDUIT SIZE 1/2 INCH-3/4 INCH, 1/2 INCH FLANGE TO CONDUIT, STEEL
• Category: Channel & Strut Fittings
• Full Technical Description: Steel Material; 1/2 Inch Max. Jaw Capacity; 100 lb Load Capacity; 1/4 Inch-20 TPI or #10-24 TPI Screw Size; Hex Head Screw Type; Yes Supplied With Screw; Approval UL, CUL; Rod Size 1/4 Inch, 3/8 Inch; Conduit Size 1/2 to 3/4 Inch; SSF-BBC Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Beam Clamp
• Unspsc: 31162905
• UPC 12 Digit: 785991201673
• SKU Name: stlcity ssfbbcc1/23/4v

Resources

• Manufacturer Spec Sheet
