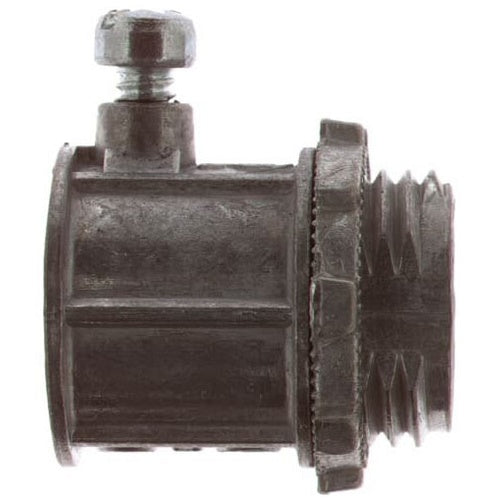

Steel City TC223SC 1" Connector, Set-Screw, Die-Cast, Emt

Overview

Steel City TC223SC 1" Connector, Set-Screw, Die-Cast, Emt

Product Specifications

• UPC: 78599143764
• Standard Package: 200 per Pack
• Approval: UL, CSA
• Used On: EMT Conduit
• Additional Information: Application Commercial
• Catalog Number: TC 223 SC
• Type: Set Screw
• Throat Type: Non-Insulated
• Trade Size: 1 Inch
• Diameter: 1-27/64 Inch
• Length: 1-9/16 Inch
• Material: Die-Cast Zinc
• Constructional Feature: Concrete Tight
• Catalog Description: CONNECTOR, NON-INSULATED SET SCREW, CONDUIT SIZE 1 INCH, LENGTH TC221 SERIES 1-9/16 INCH TC821 SERIES 1-21/32 INCH, WIDTH 1-27/64 INCH, DIE CAST ZINC
• Category: Die Cast Uninsulated Straight Set Screw Emt Connectors
• Full Technical Description: Set Screw Type; Die-Cast Zinc Material; 1-9/16 Inch; EMT Conduit Used on; UL, CSA Approval; 1-27/64 Inch Diameter; 200 Per Pack Standard Package; 1 Inch Trade Size; Concrete Tight; Non-Insulated Throat Type; Application Commercial
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121434
• UPC 12 Digit: 785991437645
• SKU Name: stlcity tc223sc

Resources

• Manufacturer Spec Sheet
