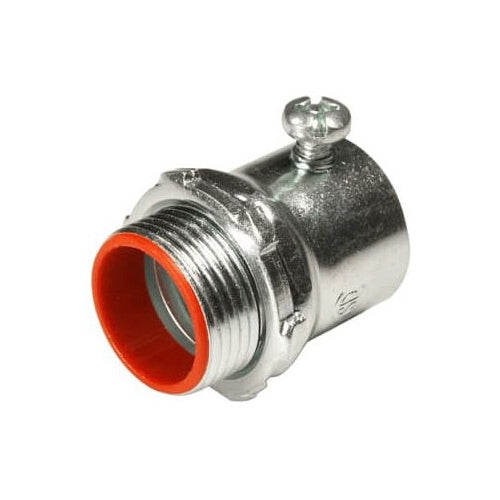

Steel City TC727A 2-1/2" Connector, Set-Screw, Emt, Steel, Insulated

Overview

Steel City TC727A 2-1/2" Connector, Set-Screw, Emt, Steel, Insulated

Product Specifications

• UPC: 78599102538
• Approval: UL
• Used On: EMT Conduit
• Catalog Number: TC727A
• Model: Series TC
• Type: Set Screw, Straight
• Throat Type: Insulated
• Trade Size: 2-1/2 Inch
• Material: Zinc Plated Steel
• Constructional Feature: Concretetight
• Standard Package: 10
• Catalog Description: SET SCREW CONNECTOR, INSULATED AND CONCRETE TIGHT, CONDUIT SIZE 2-1/2 INCHES, LENGTH 3.406 INCHES, MATERIAL ZINC PLATED STEEL, FOR USE WITH EMT CONDUIT
• Category: Steel Insulated Straight Set Screw Emt Connectors
• Full Technical Description: Set Screw, Straight Type; Zinc Plated Steel Material; EMT Conduit Used on; UL Approval; 10 Standard Package; 2-1/2 Inch Trade Size; Concretetight; Insulated Throat Type; SERIES TC Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121434
• UPC 12 Digit: 785991025385
• SKU Name: stlcity tc727a

Resources

• Manufacturer Spec Sheet
