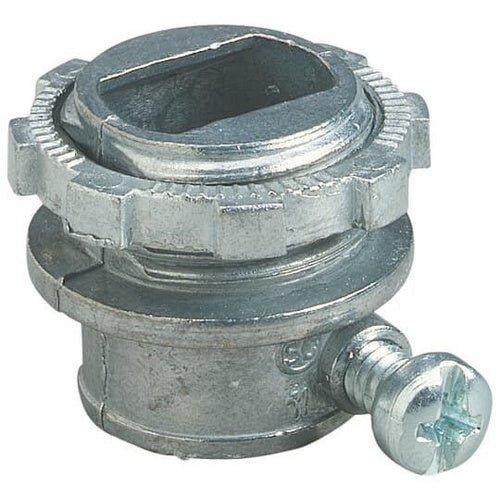

Steel City XC220SC 3/8" Connector, Set-Screw, Ac/Flex, Die-Cast

Overview

Steel City XC220SC 3/8" Connector, Set-Screw, Ac/Flex, Die-Cast

Product Specifications

• UPC: 78599144672
• Cord Size: 0.38 to 0.63 Inch
• Length: 0.84 Inch
• Installation: Set Screw
• Throat Type: Non-Insulated
• Material: Die-Cast Zinc
• Standard Package: 1000 per Outer Pack
• Approval: UL
• Catalog Number: XC 220 SC
• Brand Name: Steel City
• Model: XC
• Type: Straight
• Trade Size: 3/8 Inch
• Knockout Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Conduit
• Catalog Description: CONNECTOR, NON-INSULATED STRAIGHT SET-SCREW, SIZE 3/8 INCH, CLAMPING RANGE 0.38 INCH - 0.63 INCH, LENGTH 0.84 INCH, DIE CAST ZINC
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Die-Cast Zinc Material; 0.84 Inch; Set Screw Installation; UL Approval; 1000 Per Outer Pack Standard Package; 3/8 Inch Trade Size; 1/2 Inch Knockout Size; 0.38 to 0.63 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Conduit; Single Cable Opening; Steel City Brand; XC Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121311
• UPC 12 Digit: 785991446722
• SKU Name: stlcity xc220sc

Resources

• Manufacturer Spec Sheet
