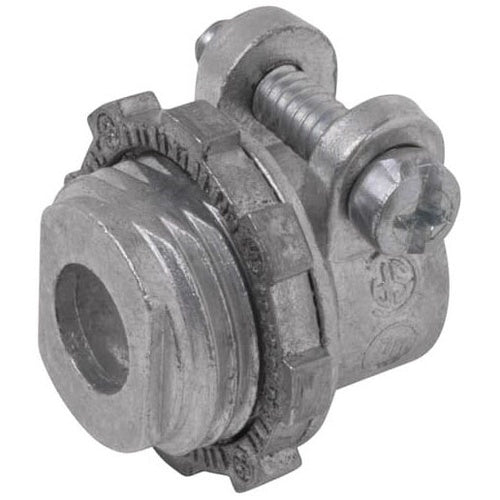

Steel City XC276 2" Connector, Squeeze, Ac/Flex, Die-Cast

Overview

Steel City XC276 2" Connector, Squeeze, Ac/Flex, Die-Cast

Product Specifications

• UPC: 78599144711
• Length: 2.54 Inch
• Installation: Squeeze
• Throat Type: Non-Insulated
• Material: Die-Cast Zinc
• Standard Package: 40 per Outer Pack
• Approval: UL, CSA
• Additional Information: RoHS Compliant
• Catalog Number: XC 276
• Brand Name: Steel City
• Model: XC
• Type: Straight
• Trade Size: 2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Conduit
• Cord Size: 2.12 to 2.47 Inch
• Catalog Description: CONNECTOR, STRAIGHT SQUEEZE-TYPE, SIZE 2 INCHES, CLAMPING RANGE 2.12 INCHES - 2.47 INCHES, LENGTH 2.54 INCHES, DIE CAST ZINC
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Die-Cast Zinc Material; 2.54 Inch; Squeeze Installation; UL, CSA Approval; 40 Per Outer Pack Standard Package; 2 Inch Trade Size; 2.12 to 2.47 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Conduit; Single Cable Opening; RoHS Compliant; XC Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121311
• UPC 12 Digit: 785991447118
• SKU Name: stlcity xc276

Resources

• Manufacturer Spec Sheet
