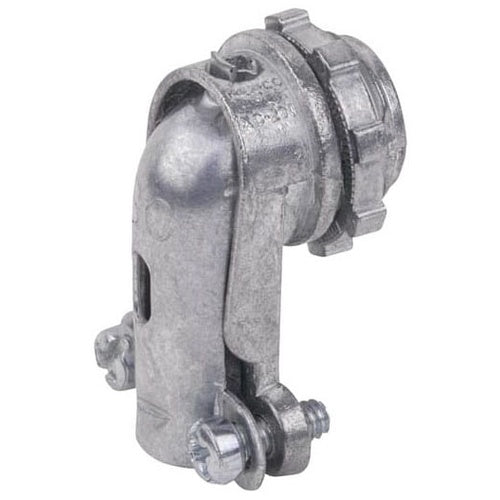

Steel City XC-295 1-1/2" Connector, 90Deg, Ac/Flex, Die-Cast, ClAMP

Overview

Steel City XC-295 1-1/2" Connector, 90Deg, Ac/Flex, Die-Cast, Clamp

Product Specifications

• UPC: 78599190896
• Length: 6.05 Inch
• Installation: (2) Screw, Clamp
• Throat Type: Non-Insulated
• Material: Die-Cast Zinc
• Standard Package: 5 per Outer Pack
• Approval: UL, CSA
• Catalog Number: XC 295
• Brand Name: Steel City
• Model: XC
• Type: 90 Degree
• Trade Size: 1-1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Conduit
• Cord Size: 1.51 to 2.47 Inch
• Catalog Description: CONNECTOR, NON-INSULATED 90 DEGREE CLAMP-TYPE, SIZE 1-1/2 INCH, CLAMPING RANGE 1.51 INCH - 2.47 INCH, LENGTH 6.05 INCHES, DIE CAST ZINC
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: 90 Degree Type; Die-Cast Zinc Material; 6.05 Inch; (2) Screw, Clamp Installation; UL, CSA Approval; 5 Per Outer Pack Standard Package; 1-1/2 Inch Trade Size; 1.51 to 2.47 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Conduit; Single Cable Opening; XC Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121311
• UPC 12 Digit: 785991908961
• SKU Name: stlcity xc295

Resources

• Product Spec Sheet
