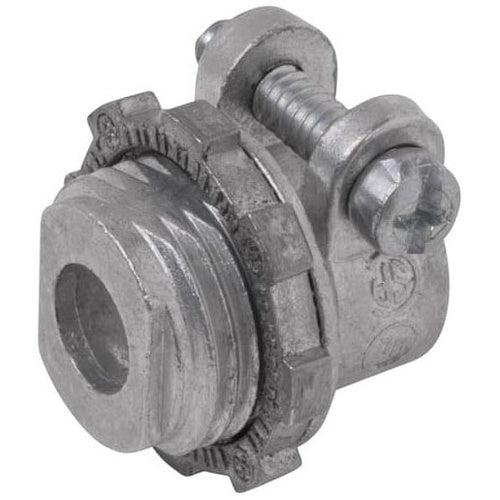

Steel City XC404 1-1/4" Connector, Squeeze, Ac/Flex

Overview

Steel City XC404 1-1/4" Connector, Squeeze, Ac/Flex

Product Specifications

• UPC: 78599144758
• Throat Type: Non-Insulated
• Material: Zinc Plated Malleable Iron
• Standard Package: 10 per Outer Pack
• Approval: UL
• Additional Information: Width 1-7/8 Inch
• Catalog Number: XC 404
• Brand Name: Steel City
• Model: XC
• Type: Straight
• Trade Size: 1-1/4 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Conduit
• Installation: Squeeze
• Catalog Description: STRAIGHT SQUEEZE TYPE CONNECTOR, CONDUIT SIZE 1-1/4 INCH, LENGTH 1-23/32 INCH, WIDTH 1-7/8 INCHES, MATERIAL ZINC PLATED MALLEABLE IRON, FOR USE WITH ARMORED CABLE/FLEXIBLE METAL CONDUIT
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Zinc Plated Malleable Iron Material; Squeeze Installation; UL Approval; 10 Per Outer Pack Standard Package; 1-1/4 Inch Trade Size; Non-Insulated Throat Type; Armored Cable/Flexible Conduit; Single Cable Opening; Width 1-7/8 Inch; XC Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 785991447583
• SKU Name: stlcity xc404

Resources

• Manufacturer Spec Sheet
