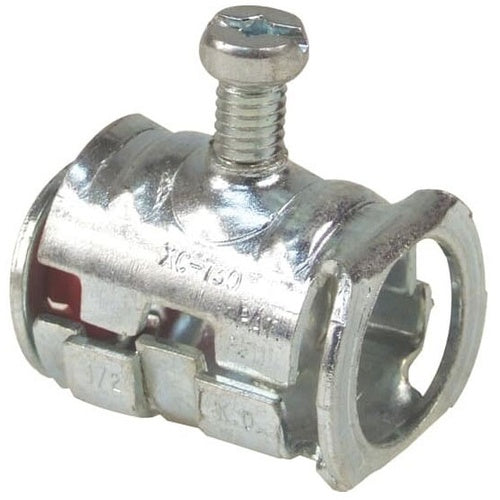

Steel City XC732 3/4" Ko, Connector, Set-Screw, Ac/Flex, Steel, Cbllk, Ins

Overview

Steel City XC732 3/4" Ko, Connector, Set-Screw, Ac/Flex, Steel, Cbllk, Ins

Product Specifications

• UPC: 78599105696
• Installation: Set Screw
• Throat Type: Insulated
• Material: Zinc Plated Steel
• Standard Package: 250
• Approval: UL, CSA
• Catalog Number: XC 732
• Brand Name: Cable Lok[R]
• Model: XC
• Type: Straight
• Knockout Size: 3/4 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Conduit
• Cord Size: 0.61 to 0.875 Inch
• Catalog Description: CABLE LOK SET SCREW CONNECTOR, SIZE RANGE 0.610 INCH - 0.875 INCH OR 3/4 INCH KNOCKOUT, AC STEEL 14/2 14/3 14/4 12/2 12/3 12/4 10/2, MC (I) STEEL 10/4 10/5 8/3 8/4 6/2, MC (I) ALUMINUM 3/4 INCH KNOCKOUT, FLEX RW 3/8 STEEL AND ALUMINUM, MATERIAL ZINC PLATED STEEL WITH NYLON INSULATOR
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Straight Type; Zinc Plated Steel Material; Set Screw Installation; UL, CSA Approval; 250 Standard Package; 3/4 Inch Knockout Size; 0.61 to 0.875 Inch Cord Size; Insulated Throat Type; Armored Cable/Flexible Conduit; Single Cable Opening; Cable LOK[R] Brand; XC Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Steel City/Kindorf
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 785991056969
• SKU Name: stlcity xc732
