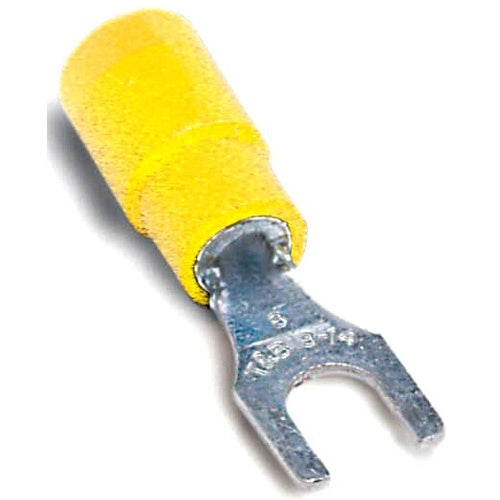

T&B 10RC-14FX 12-10 Insulated Spade Terminal

Overview

T&B 10RC-14FX 12-10 Insulated Spade Terminal

Product Specifications

• UPC: 78621080048
• Temperature Rating: 105 Deg C
• Approval: UL, CSA
• Additional Information: Size 1.15 Inch L x 1/2 Inch W; Brazed Seam Barrel; Material Electrolytic Tin Plated Copper
• Catalog Number: 10RC-14FX
• Model: RC
• Type: Standard
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Vinyl Insulated, Expanded Entry
• Stud Size: 1/4 Inch
• Catalog Description: EXPANDED VINYL-INSULATED FORK TERMINAL, LENGTH 1.17 INCHES, WIDTH .50 INCHES, MAXIMUM INSULATION .250, BOLT HOLE 1/4 INCH, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 1/4 Inch Stud Size; Vinyl Insulated, Expanded Entry Insulation Type; Size 1.15 Inch L X 1/2 Inch W; Brazed Seam Barrel; Material Electrolytic Tin Plated Copper; RC Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210800486
• SKU Name: t&b 10rc14fx
