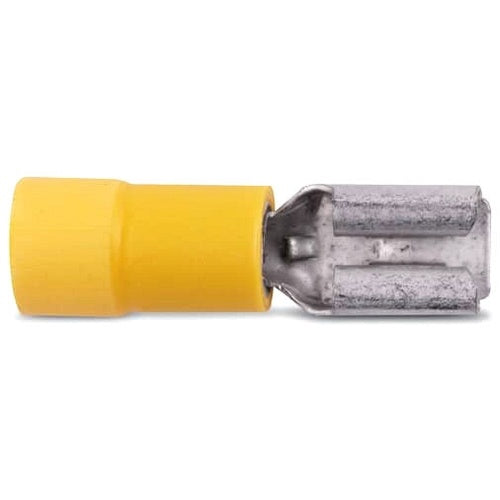

T&B 10RC-250F 12-10 Insulated Female Disconnect

Overview

T&B 10RC-250F 12-10 Insulated Female Disconnect

Product Specifications

• UPC: 78621080052
• Temperature Rating: 105 Deg C
• Standard Package: 50 per Inner Pack, 250 per Outer Pack
• Approval: UL, CSA
• Additional Information: Overall Dimension 1.03 Inch Length x 0.29 Inch Width; Material Electro-Tin Plated Brass
• Catalog Number: 10RC-250F
• Model: 250
• Type: Brazed Seam, Serrated Barrel
• Tab Size: 0.25 Inch x 0.032 Inch
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Vinyl Insulated
• Catalog Description: VINYL-INSULATED FEMALE DISCONNECT, LENGTH 1.03 INCHES, WIDTH .29 INCHES, MAXIMUM INSULATION .250, TAB SIZE .250X.032, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Brazed Seam, Serrated Barrel Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 250 Per Outer Pack Standard Package; Vinyl Self-Insulated Insulation Type; 0.25 Inch X 0.032 Inch Tab Size; Voltage Rating 300 Volt; Overall Dimension 1.03 Inch Length X 0.29 Inch Width; Material Electro Tin Plated Brass; 250 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Female Disconnect
• Unspsc: 39121447
• UPC 12 Digit: 786210800523
• SKU Name: t&b 10rc250f
