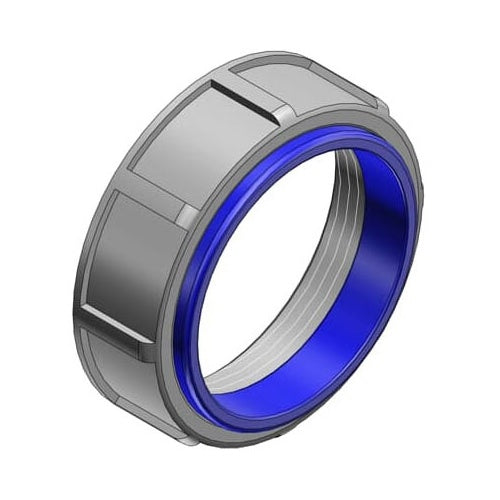

T&B 1222 1/2" Insulated Steel Bushing

Overview

T&B 1222 1/2" Insulated Steel Bushing

Product Specifications

• UPC: 78621001222
• Standard Package: 100
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEC 373-6C
• Catalog Number: 1222
• Type: Threaded Female
• Trade Size: 1/2 Inch
• Diameter: 1-1/32 Inch
• Height: 29/64 Inch
• Throat Type: Nylon Insulated
• Temperature Rating: 105 Deg C
• Material: Steel
• Catalog Description: 1/2 INCH INSULATED BUSHING, STEEL, BLUE INSULATING LINER IN THROAT FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Female Type; Steel Material; 29/64 Inch; Rigid Conduit/Imc Used on; UL, CSA Approval; 1-1/32 Inch Diameter; 105 Deg C Temperature Rating; 100 Standard Package; 1/2 Inch Trade Size; Nylon Insulated Throat Type; Applicable Standard NEC 373-6C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/Emt Conduit Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210012223
• SKU Name: t&b 1222

Resources

• Manufacturer Spec Sheet
