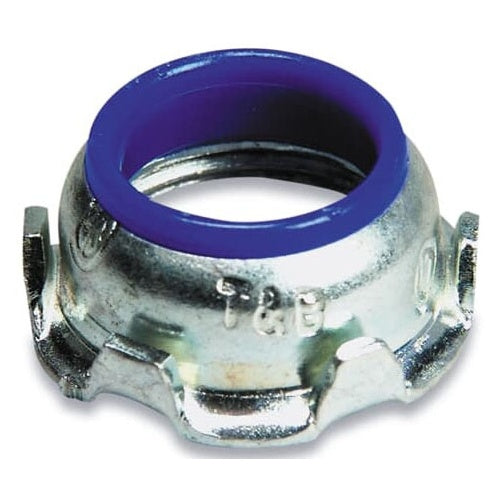

T&B 1229AL 3" Bushing Insulated Aluminum

Overview

T&B 1229AL 3" Bushing Insulated Aluminum

Product Specifications

• UPC: 78621080183
• Standard Package: 5
• Approval: UL, CSA
• Used On: RIGID CONDUIT/IMC
• Additional Information: APPLICABLE STANDARD NEC 373-6C
• Catalog Number: 1229AL
• Type: THREADED FEMALE
• Trade Size: 3 INCH
• Diameter: 3-27/32 INCH
• Height: 15/16 INCH
• Throat Type: NYLON INSULATED
• Temperature Rating: 105 DEG C
• Material: ALUMINUM
• Catalog Description: 3 INCH INSULATED BUSHING, ALUMINUM, BLUE INSULATING LINER IN THROAT FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Female Type; Aluminum Material; 15/16 Inch; Rigid Conduit/Imc Used on; UL, CSA Approval; 3-27/32 Inch Diameter; 105 Deg C Temperature Rating; 5 Standard Package; 3 Inch Trade Size; Nylon Insulated Throat Type; Applicable Standard NEC 373-6C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210801834
• SKU Name: t&b 1229al

Resources

• Product Spec Sheet
