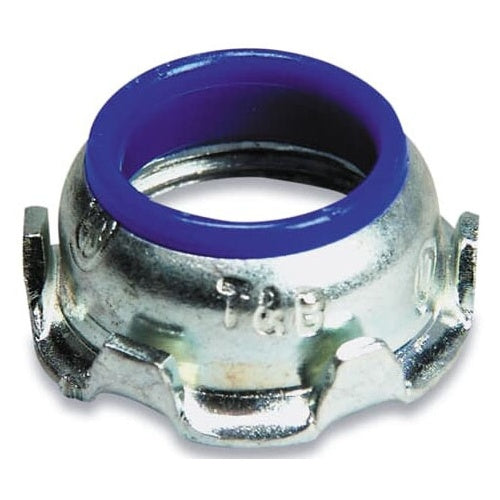

T&B 1230AL 3-1/2" Bushing Insulated Aluminum

Overview

T&B 1230AL 3-1/2" Bushing Insulated Aluminum

Product Specifications

• UPC: 78621080184
• Used On: RIGID CONDUIT/IMC
• Installation: THREADED FEMALE
• Additional Information: APPLICABLE STANDARD NEC 373-6C
• Catalog Number: 1230AL
• Model: 12
• Trade Size: 3-1/2 INCH
• Diameter: 4-7/16 INCH
• Height: 1-1/16 INCH
• Throat Type: NYLON INSULATED
• Temperature Rating: 105 DEG C
• Material: ALUMINUM
• Catalog Description: 3-1/2 INCH INSULATED BUSHING, ALUMINUM, BLUE INSULATING LINER IN THROAT FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Aluminum Material; 1-1/16 Inch; Rigid Conduit/Imc Used on; 4-7/16 Inch Diameter; 105 Deg C Temperature Rating; 3-1/2 Inch Trade Size; Nylon Insulated Throat Type; Applicable Standard NEC 373-6C; Installation Threaded Female; 12 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/Emt Conduit Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210801841
• SKU Name: t&b 1230al

Resources

• Manufacturer Spec Sheet
