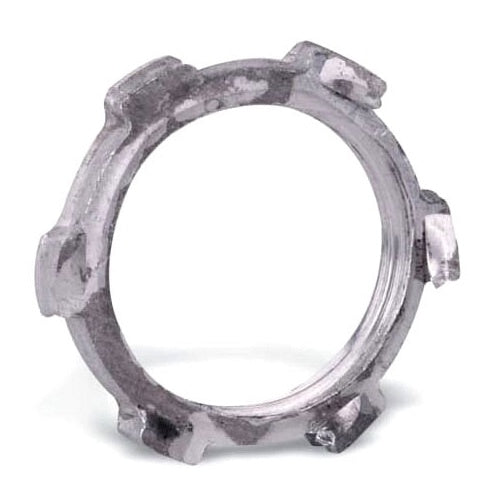

T&B 148 3" Malleable Iron Locknut

Overview

T&B 148 3" Malleable Iron Locknut

Product Specifications

• UPC: 78621000148
• Approval: UL 514B, CSA C22.2
• Additional Information: Applicable Standard NEMA FB-1, NFPA 70
• Catalog Number: 148
• Brand Name: T&B
• Trade Size: 3 Inch
• Diameter: 4-3/16 Inch
• Thickness: 13/32 Inch
• Material: Chromate Coated Malleable Iron
• Installation: Threaded
• Standard Package: 25 per Outer Pack
• Catalog Description: 3 INCH MALLEABLE IRON LOCKNUT FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Chromate Coated Malleable Iron Material; Threaded Installation; UL 514B, CSA C22.2 Approval; 4-3/16 Inch Diameter; 13/32 Inch Thickness; 25 Per Outer Pack Standard Package; 3 Inch Trade Size; Applicable Standard NEMA FB-1, NFPA 70
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Locknut
• Unspsc: 31161716
• UPC 12 Digit: 786210001487
• SKU Name: t&b 148

Resources

• Manufacturer Spec Sheet
