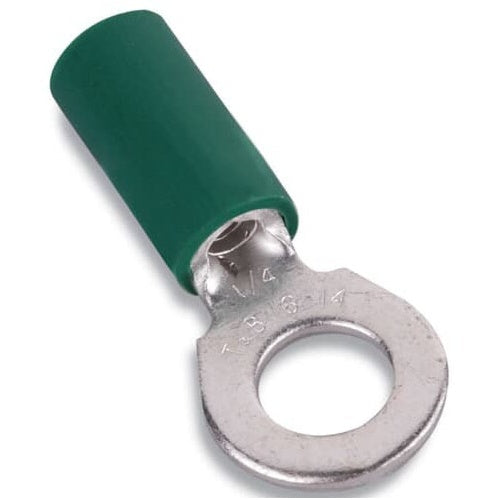

T&B 14RBC-10 16-14 Insulated Ring Terminal

Overview

T&B 14RBC-10 16-14 Insulated Ring Terminal

Product Specifications

• UPC: 78621081678
• Temperature Rating: 105 Deg C
• Standard Package: 50
• Approval: UL 486-A, CSA 22.2
• Additional Information: Dimension 1.13 Inch L x 0.39 Inch W x 0.05 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: 14RBC-10
• Model: RBC
• Type: Heavy Duty, Funnel Entry
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Color: Green
• Insulation Type: Vinyl Insulated
• Stud Size: #10
• Catalog Description: VINYL-INSULATED HEAVY-DUTY RING TERMINAL, LENGTH 1.13 INCHES, WIDTH .39 INCHES, MAXIMUM INSULATION .210, BOLT HOLE #10, WIRE RANGE #16-#14 HEAVY DUTY AWG, COLOR GREEN, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Heavy Duty, Funnel Entry Type; Green Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 50 Standard Package; #10 Stud Size; Vinyl Insulated Insulation Type; Dimension 1.13 Inch L X 0.39 Inch W X 0.05 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; RBC Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210816784
• SKU Name: t&b 14rbc10
