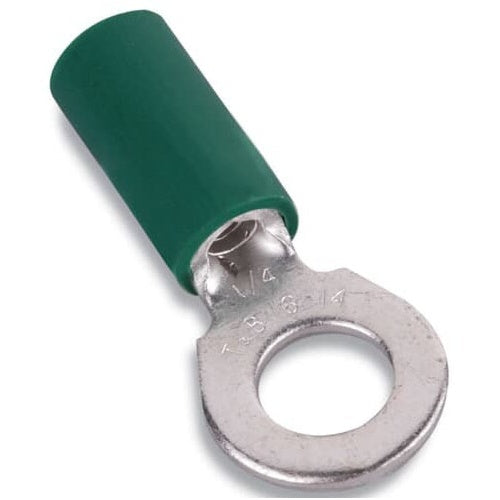

T&B 14RBC-516 16-14 Insulated Ring Terminal

Overview

T&B 14RBC-516 16-14 Insulated Ring Terminal

Product Specifications

• UPC: 78621081685
• Standard Package: 50 per Pack
• Approval: UL 486A/B, CSA 22.2
• Additional Information: Size 1.29 Inch Length x 0.54 Inch Width; Maximum Insulation 0.21 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Catalog Number: 14RBC-516
• Type: Heavy Duty
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Color: Green
• Insulation Type: Vinyl Insulated, Funnel Entry
• Stud Size: 5/16 Inch
• Temperature Rating: 105 Deg C
• Catalog Description: VINYL-INSULATED HEAVY-DUTY RING TERMINAL, LENGTH 1.29 INCHES, WIDTH 0.54 INCH, MAXIMUM INSULATION 0.21, BOLT SIZE 5/16 INCH, WIRE RANGE 16-14 HEAVY DUTY AWG, COLOR GREEN, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Heavy Duty Type; Green Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 105 Deg C Temperature Rating; 50 Per Pack Standard Package; 5/16 Inch Stud Size; Vinyl Insulated, Funnel Entry Insulation Type; Size 1.29 Inch Length X 0.54 Inch Width; Maximum Insulation 0.21 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210816852
• SKU Name: t&b 14rbc516
