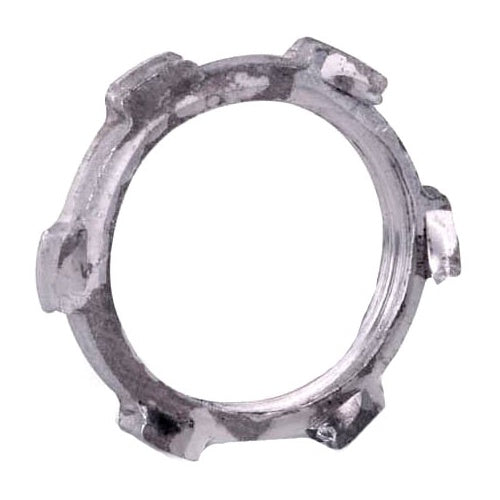

T&B 152AL 5" Locknut

Overview

T&B 152AL 5" Locknut

Product Specifications

• UPC: 78621080127
• Approval: UL 514B, CSA C22.2
• Additional Information: APPLICABLE STANDARD NEMA FB-1, NFPA 70; USED ON IMC/RIGID CONDUIT
• Catalog Number: 152AL
• Type: BONDING
• Trade Size: 5 INCH
• Diameter: 6-1/2 INCH
• Thickness: 17/32 INCH
• Material: DEGREASED COPPER FREE ALUMINUM
• Installation: THREADED
• Standard Package: 4
• Catalog Description: 5 INCH ALUMINUM LOCKNUT FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Bonding Type; Degreased Copper Free Aluminum Material; Threaded Installation; UL 514B, CSA C22.2 Approval; 6-1/2 Inch Diameter; 17/32 Inch Thickness; 4 Standard Package; 5 Inch Trade Size; Applicable Standard NEMA FB-1, NFPA 70; Used on Imc/Rigid Conduit
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Locknut
• Unspsc: 31161716
• UPC 12 Digit: 786210801278
• SKU Name: t&b 152al

Resources

• Product Spec Sheet
