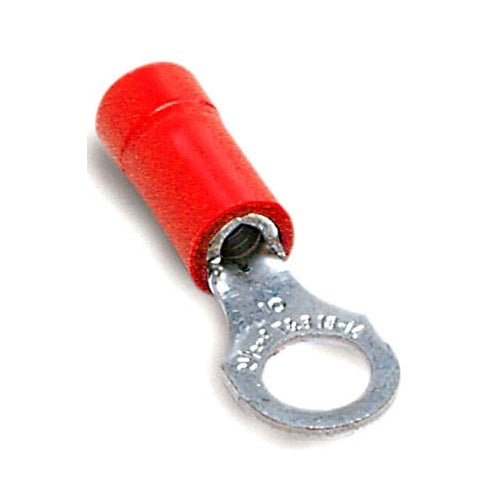

T&B 18RA-4X Stak-On Vinyl Terminal

Overview

T&B 18RA-4X Stak-On Vinyl Terminal

Product Specifications

• UPC: 78621060816
• Stud Size: #4
• Temperature Rating: 105 DEG C
• Standard Package: 100
• Approval: UL 486-A, CSA 22.2
• Additional Information: DIMENSION 0.97 INCH LENGTH X 0.31 INCH WIDTH X 0.03 INCH THICK; BRAZED SEAM SERRATED BARREL; FINISH ELECTROPLATED TIN
• Catalog Number: 18RA-4X
• Brand Name: Sta-Kon.
• Model: RA
• Type: STANDARD
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Color: RED
• Insulation Type: VINYL INSULATED, EXPANDED ENTRY
• Catalog Description: EXPANDED VINYL-INSULATED RING TERMINAL, LENGTH .97 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .170, BOLT HOLE #4, WIRE RANGE #22-#18 AWG, COLOR RED, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 100 Standard Package; #4 Stud Size; Vinyl Insulated, Expanded Entry Insulation Type; Sta-Kon. Brand; Dimension 0.97 Inch Length X 0.31 Inch Width X 0.03 Inch Thick; Brazed Seam Serrated Barrel; Finish Electroplated Tin; RA Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210608167
• SKU Name: t&b 18ra4x
